Outside Right Bumper Antenna, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

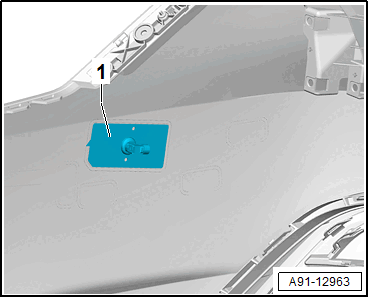

-- Release and disconnect the connector on the bumper antenna -1-.

GWWA91-12963Courtesy of AUDI OF AMERICA, LLC

-- Remove bumper antenna -1- from the rear bumper cover.
