Engine Speed Sensor -G28-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi RS 3. However, it is still accessible from the selected car via links, so may be relevant.

During installation, all cable ties must be installed at the same location.

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Free up the connector -2- and disconnect.

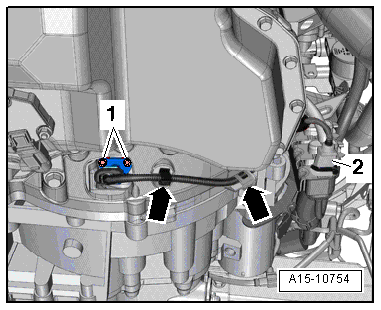

Fig 1: Engine Speed Sensor -G28- Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness -arrows-.

-- Remove the bolts -1- and remove the Engine Speed Sensor -G28-.
