Camshaft Position Sensor, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi RS 3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

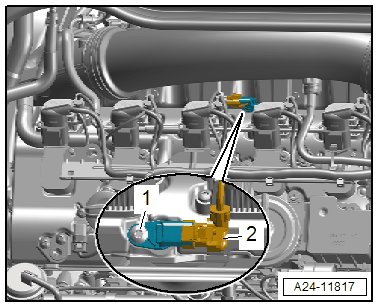

Camshaft Position Sensor -G40- :

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove the bolt -2- and then remove the Camshaft Position Sensor -G40-.

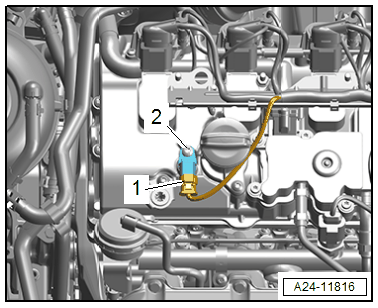

Camshaft Position Sensor 3 -G300-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

-- Remove the bolt -1- and then remove the Camshaft Position Sensor 3 -G300-.
