Oil Pump, Removing And Installing: Notes

WARNING: This page is about a different car, the 2024 Audi RS 3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Trim Removal Wedge :3409

Fig 1: Identifying Trim Removal Wedge
Courtesy of AUDI OF AMERICA, LLC

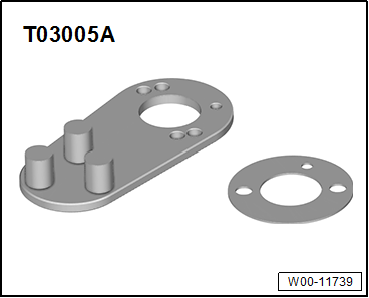

Oil Pump Alignment Plate :T03005A

Fig 2: Oil Pump Alignment Plate
Courtesy of AUDI OF AMERICA, LLC
Locking Pin (3 pc.) :T40011

Fig 3: Identifying Locking Pin T40011
Courtesy of AUDI OF AMERICA, LLC
Crankshaft Locking Pin :T40069

Fig 4: Crankshaft Locking Pin T40069
Courtesy of AUDI OF AMERICA, LLC
Crankshaft Adapter :T03003A

Fig 5: Crankshaft Adapter T03003
Courtesy of AUDI OF AMERICA, LLC

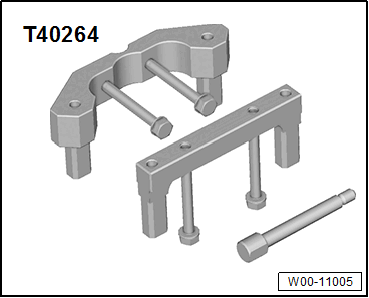

Camshaft Lock :T40264 Camshaft Lock - Adapter Arm for T40264 :T40264/2A

Fig 6: Camshaft Lock
Courtesy of AUDI OF AMERICA, LLC

Prepare the Arm for T40264 :T40264/2

Courtesy of AUDI OF AMERICA, LLC

The camshafts are secured with the Camshaft Lock : T40264/2A in "TDC".

-- If only one Camshaft Lock :T40264/2 is available, the lower bar -arrow- must be separated from the Camshaft Lock :T40264/2 .

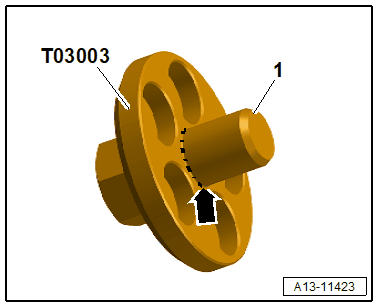

Prepare the Crankshaft Adapter :T03003

Courtesy of AUDI OF AMERICA, LLC

-- When only the tool Crankshaft Adapter :T03003 is available the pins -1- must be separated at the mark -arrow- so that it can be placed on the vibration damper.
