Overview - Engine Oil Cooler
WARNING: This page is about a different car, the 2024 Audi RS 3. However, it is still accessible from the selected car via links, so may be relevant.
- Seal
- Only in connection with the oil filter element
- lightly lubricate
- Installation position: service tab faces upward
- Oil Filter Element
- Removing and installing. Refer to ENGINE OIL
- Oil Filter Bracket
- With the change-over valve for the engine oil cooler and oil check valve
- Removing and Installing. Refer to OIL FILTER BRACKET WITH OIL COOLER, REMOVING AND INSTALLING .
- Oil Pressure Sensor -G10-
- Removing and Installing. Refer to Oil Pressure Sensor -G10-, REMOVING AND INSTALLING .
- Checking using the => Vehicle Diagnostic Tester.
- 21 Nm
- Seal
- Replace the seal if damaged, if the seal cannot be replaced individually, refer to the Parts Information, replacing the Oil Pressure Sensor -G10-
- Seal
- Replace after removing
- Bolt
- Replace after removing
- 23 Nm
- Engine Oil Cooler
- Coolant Hose Connection Diagram. Refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Removing and Installing. Refer to ENGINE OIL COOLER, REMOVING AND INSTALLING .
- Seal
- Replace after removing
- Seal
- Replace after removing
- Bracket
- Bolt
- 20 Nm
- Oil Filter Housing
- Draining, removing and installing. Refer to ENGINE OIL .
- Dust Cap

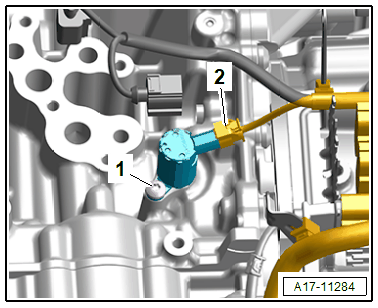

Oil Pressure Regulation ValveN428
- Replace the O-ring if it is damaged or if there are leaks.
1 -
Bolt
- 9 Nm
2 -
Connector
- For the Oil Pressure Regulation Valve -N428-
Oil Pressure Regulation Valve -N428-, Removing and Installing. Refer to Oil Pressure Regulation Valve -N428-, REMOVING AND INSTALLING .
