Crankcase Ventilation Module, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi RS 3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Disconnect the connectors -arrows- and free them up.

Courtesy of AUDI OF AMERICA, LLC

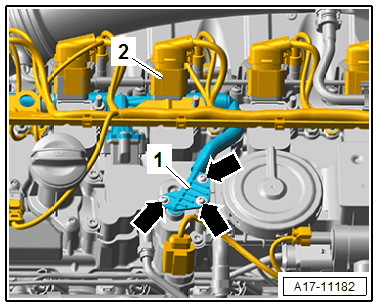

-- Remove the nuts -2- and press the bracket -1- to the side.

Market-Specific for North America:

-- Remove the cylinder ignition coil "2". Refer to IGNITION COILS, REMOVING AND INSTALLING .

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, remove the bolts -arrows- and remove the connection -1-.

-- Loosen the hose clamps -arrows- and remove the hoses.

Fig 1: Crankcase Ventilation Module - Tightening Specifications and Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 through 10- and remove the crankcase ventilation module.
