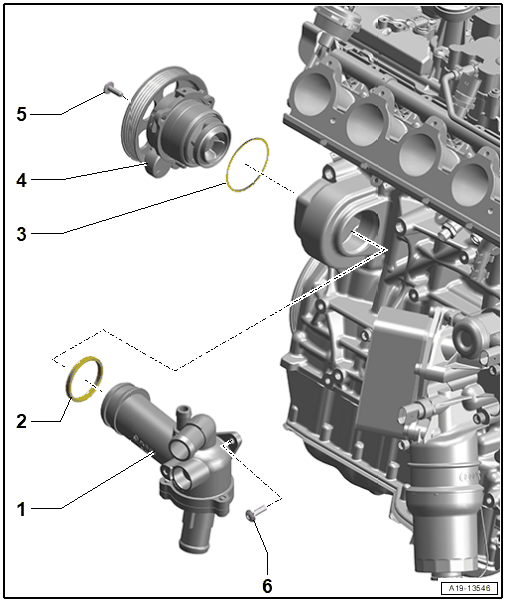

Overview - Coolant Pump/Coolant Thermostat
WARNING: This page is about a different car, the 2024 Audi RS 3. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Distribution Housing
- With coolant thermostat, checking. Refer to COOLANT THERMOSTAT, CHECKING .
- Coolant Distribution Housing, Removing and Installing. Refer to COOLANT DISTRIBUTION HOUSING, REMOVING AND INSTALLING .
- Seal
- Replace after removing
- O-Ring
- Replace after removing
- Coolant Pump
- Removing and Installing. Refer to COOLANT PUMP, REMOVING AND INSTALLING .
- Bolt with Fastener
- 9 Nm
- Bolt
- Replace after removing
- 8 Nm +90°
