Overview - Coolant Pipes
WARNING: This page is about a different car, the 2024 Audi RS 3. However, it is still accessible from the selected car via links, so may be relevant.

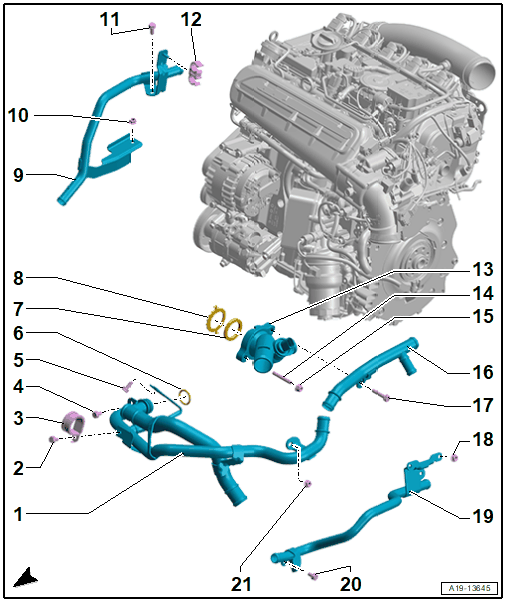

Engine-side coolant pipes
- Front Coolant Pipes
- Unit with ) OVERVIEW - COOLANT PIPES through 07/2017
- Removing and installing
- Bolt
- 9 Nm
- Clamp
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- O-Ring
- Replace after removing
- Seal
- Replace after removing
- Support Ring
- Replace after removing
- Right Coolant Pipe
- Removing and Installing. Refer to RIGHT COOLANT PIPE, REMOVING AND INSTALLING .
- Nut
- 8 Nm
- Bolt
- 8 Nm
- Bracket
- Coolant Connection
- Threaded Pin
- 9 Nm
- Nut
- 8 Nm
- Upper Left Coolant Pipe
- Removing and Installing. Refer to UPPER LEFT COOLANT PIPE, REMOVING AND INSTALLING, FROM 08/2017 .
- Bolt
- 9 Nm
- Nut
- 9 Nm
- Left Coolant Pipe
- Removing and Installing. Refer to LEFT COOLANT PIPE, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Nut
- 9 Nm
Coolant pipe on transmission - tightening specifications
- Nut - 9 Nm
- Bolt - 9 Nm
Body side coolant pipes
All components are described under: OVERVIEW - COOLANT PIPES .
