Upper Left Coolant Pipe, Removing And Installing, From 08/2017: Removing
WARNING: This page is about a different car, the 2024 Audi RS 3. However, it is still accessible from the selected car via links, so may be relevant.
-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

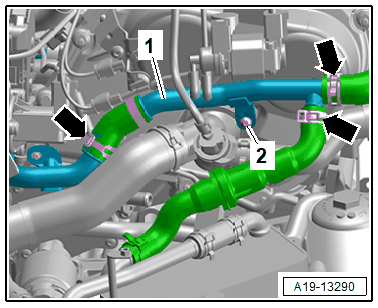

-- Remove the bolt -2-.
-- Loosen the hose clamps -arrows-, remove the coolant hoses and remove the coolant pipe.
