Front Coolant Pipes, Removing And Installing, Through 07/2017: Removing
WARNING: This page is about a different car, the 2024 Audi RS 3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
-- Remove the intake manifold upper section. Refer to INTAKE MANIFOLD UPPER SECTION, REMOVING AND INSTALLING .

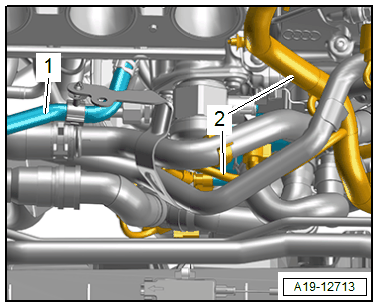

-- Free up the wiring harnesses -2- and fuel hose -1-.

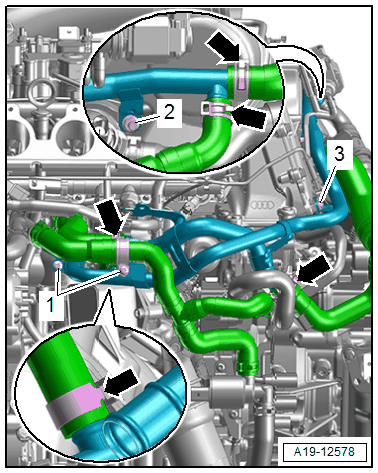

-- Remove the bolts -1-, double bolt -2- and nut -3- and remove the front coolant pipes from the coolant thermostat housing.
-- Loosen the hose clamps -arrows-, remove the coolant hoses and remove the coolant pipes.
