Radiator Fan, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi A3 Quattro and 2024 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- During installation, all cable ties must be installed at the same location.
-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .
-- Free up the electrical wire.

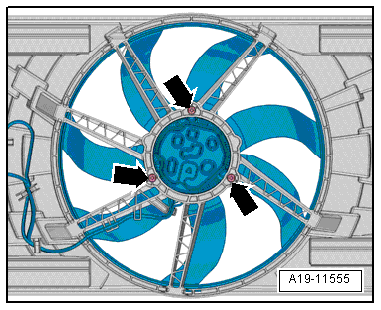

-- Remove the bolts -arrows- and remove the Radiator Fan -VX57-.
