Exhaust Temperature Regulation Components, Removing And Installing: Removing

-- Loosen the left center underbody trim panel toward the exhaust system and push slightly downward. Refer to OVERVIEW - UNDERBODY TRIM PANELS .

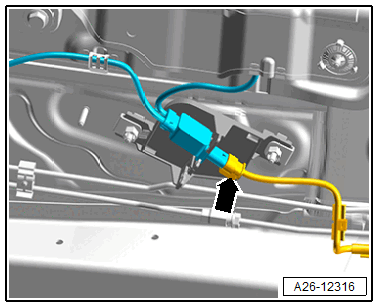

-- Remove the connector -arrow- from the bracket and disconnect them and then free up the wires (example illustration).

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Exhaust Gas Temperature Sensor 3 -G495- -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Exhaust Gas Temperature Sensor 4 -G648- -arrow-.

Courtesy of AUDI OF AMERICA, LLC
