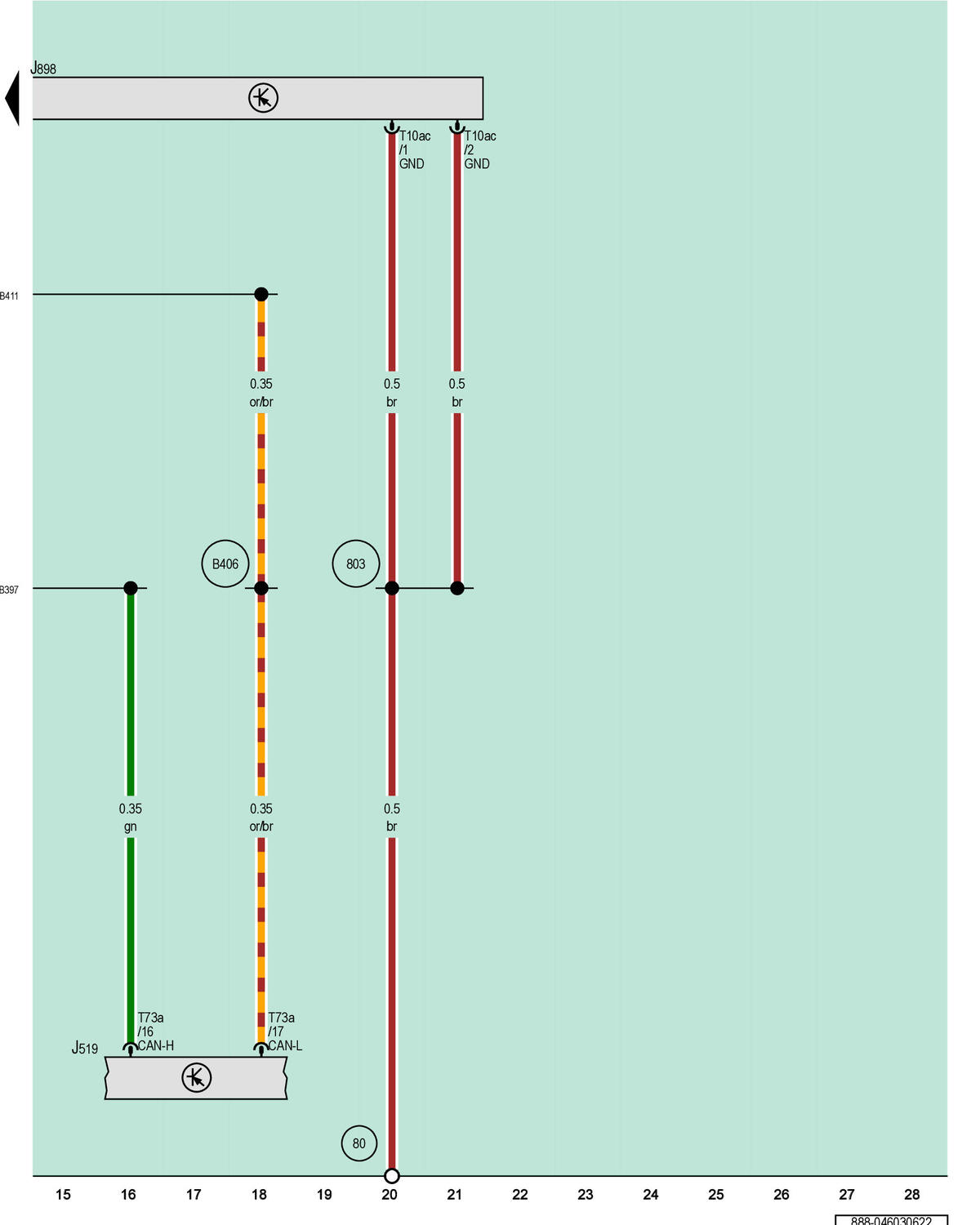

Vehicle Electrical System Control Module, Windshield Projection Head Up Display Control Module
J519
Vehicle Electrical System Control Module
J898
Windshield Projection Head Up Display Control Module
T10ac
10-Pin Connector, Black
T73a
73-Pin Connector, Black
80
Ground Connection in Center of Front Crossmember
803
Ground Connection (in Center Console Wiring Harness)
B397
Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B406
Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
B411
Comfort System CAN Bus Low Connection 6 (in Main Wiring Harness)
