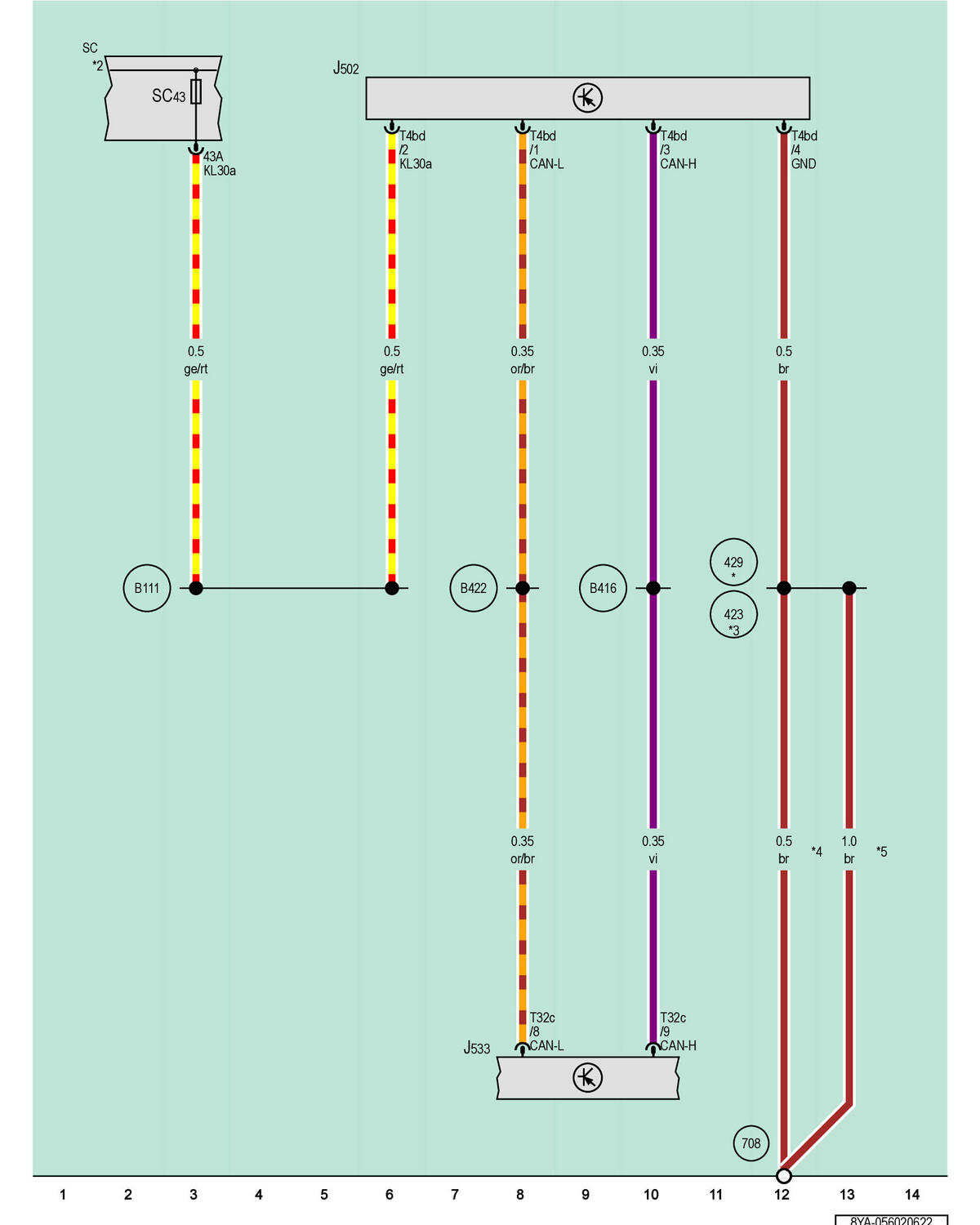

Tire Pressure Monitoring Control Module, Data Bus On Board Diagnostic Interface, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J502

Tire Pressure Monitoring Control Module

J533

Data Bus on Board Diagnostic Interface

SC

Fuse Panel C

SC43

Fuse 43 (On Fuse Panel C)

T4bd

4-Pin Connector, Gray

T32c

32-Pin Connector, Black

423

Ground Connection 1 (in Right Rear Wiring Harness)

429

Ground Connection 4 (in Right Rear Wiring Harness)

708

Ground Connection 2 on Right Rear Chassis Side Member

B111

Positive Connection 1 (30a) (in Interior Wiring Harness)

B416

Infotainment CAN Bus High Connection 2 (in Main Wiring Harness)

B422

Infotainment CAN Bus Low Connection 2 (in Main Wiring Harness)

*

Sportback

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*3

Sedan

*4

Through November 2021

*5

From November 2021
