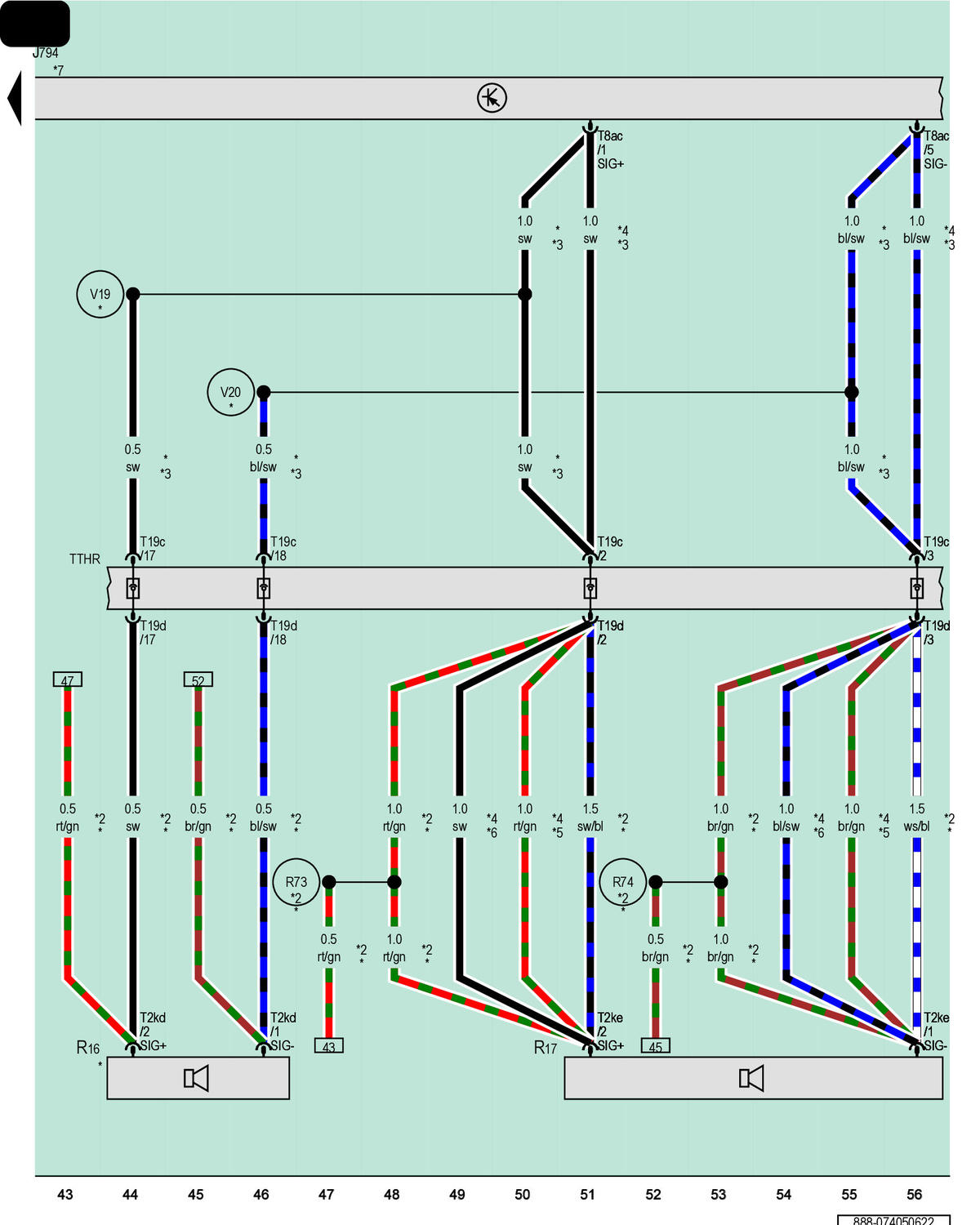

Information Electronics Control Module 1, Right Rear Treble Speaker, Right Rear Bass Speaker
J794
Information Electronics Control Module 1
R16
Right Rear Treble Speaker
R17
Right Rear Bass Speaker
T2kd
2-Pin Connector, Black
T2ke
2-Pin Connector, Black
T8ac
8-Pin Connector, Brown
T19c
19-Pin Connector, Black
T19d
19-Pin Connector, Black
TTHR
Right Rear Door Coupling Point
R73
Speaker Positive Connection (in Right Rear Door Wiring Harness)
R74
Speaker Negative Connection (in Right Rear Door Wiring Harness)
V19
Right Rear Speaker Positive Connection (in Speaker Wiring Harness)
V20
Right Rear Speaker Negative Connection (in Speaker Wiring Harness)
*
For Vehicles with Amplified Speakers
*2
Depending on Equipment
*3
Different Wire Color Possible
*4
For Vehicles with 6 Passive Speakers
*5
Through June 2021
*6
From June 2021
*7
Refer to Applicable MMI (Information Electronics) Wiring Diagram
