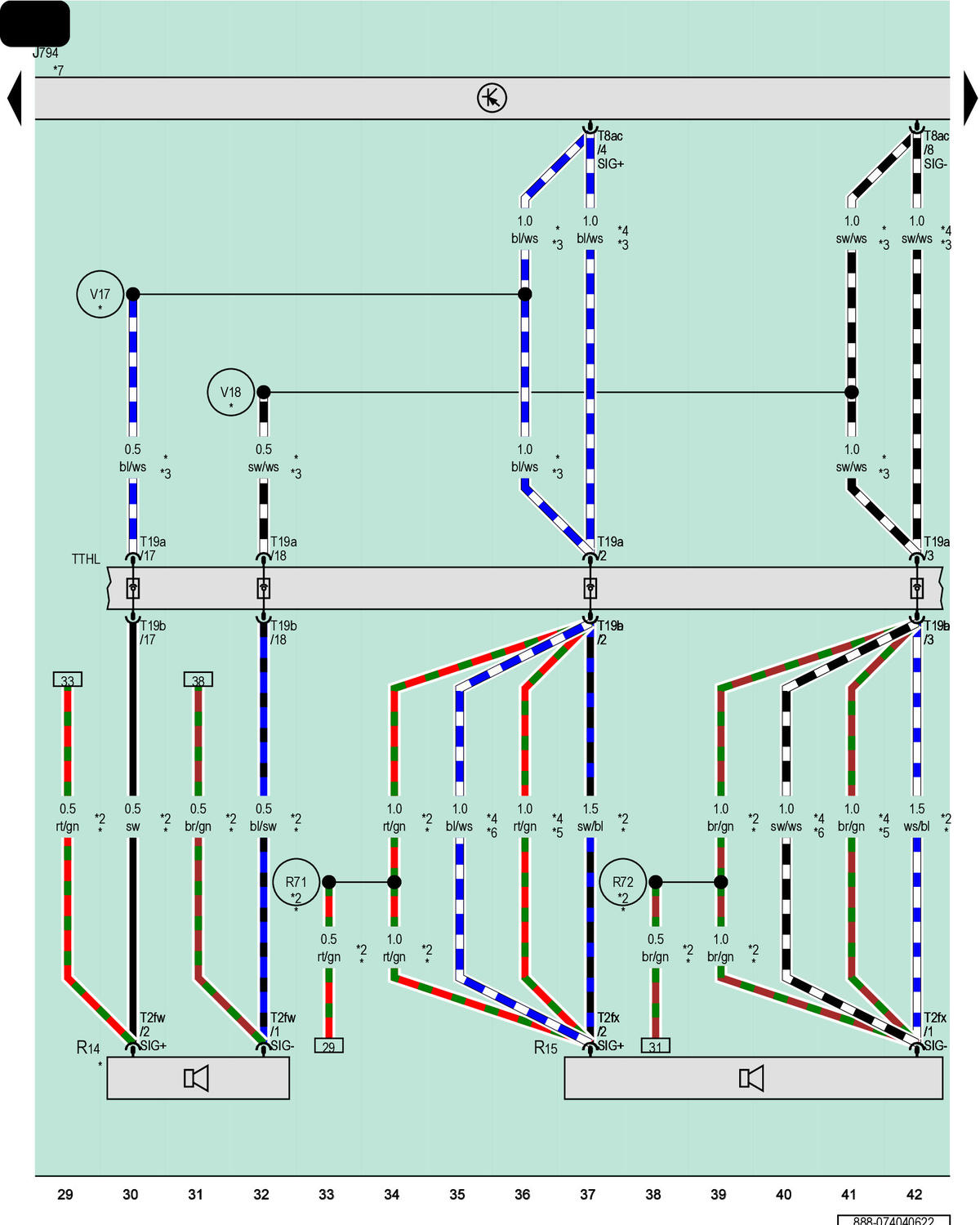

Information Electronics Control Module 1, Left Rear Treble Speaker, Left Rear Bass Speaker

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R14

Left Rear Treble Speaker

R15

Left Rear Bass Speaker

T2fw

2-Pin Connector, Black

T2fx

2-Pin Connector, Black

T8ac

8-Pin Connector, Brown

T19a

19-Pin Connector, Black

T19b

19-Pin Connector, Black

TTHL

Left Rear Door Coupling Point

R71

Speaker Positive Connection (in Left Rear Door Wiring Harness)

R72

Speaker Negative Connection (in Left Rear Door Wiring Harness)

V17

Left Rear Speaker Positive Connection (in Speaker Wiring Harness)

V18

Left Rear Speaker Negative Connection (in Speaker Wiring Harness)

*

For Vehicles with Amplified Speakers

*2

Depending on Equipment

*3

Different Wire Color Possible

*4

For Vehicles with 6 Passive Speakers

*5

Through June 2021

*6

From June 2021

*7

Refer to Applicable MMI (Information Electronics) Wiring Diagram
