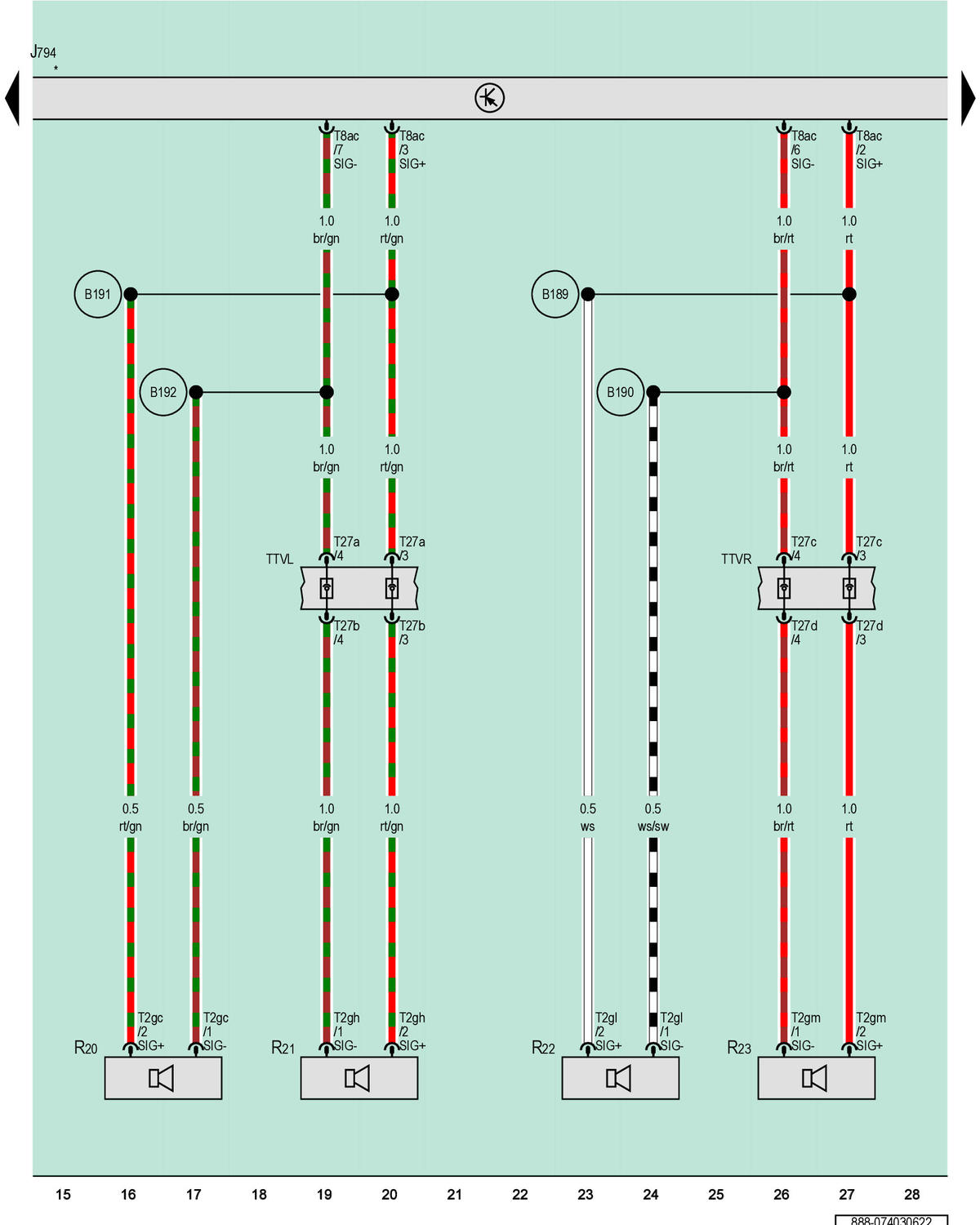

Information Electronics Control Module 1, Left Front Treble Speaker, Left Front Bass Speaker, Right Front Treble Speaker, Right Front Bass Speaker
J794
Information Electronics Control Module 1
R20
Left Front Treble Speaker
R21
Left Front Bass Speaker
R22
Right Front Treble Speaker
R23
Right Front Bass Speaker
T2gc
2-Pin Connector, Black
T2gh
2-Pin Connector, Black
T2gl
2-Pin Connector, Black
T2gm
2-Pin Connector, Black
T8ac
8-Pin Connector, Brown
T27a
27-Pin Connector, Black
T27b
27-Pin Connector, Black
T27c
27-Pin Connector, Black
T27d
27-Pin Connector, Black
TTVL
Left Front Door Coupling Point
TTVR
Right Front Door Coupling Point
B189
Right Front Speaker Positive Connection (in Interior Wiring Harness)
B190
Right Front Speaker Negative Connection (in Interior Wiring Harness)
B191
Left Front Speaker Positive Connection (in Interior Wiring Harness)
B192
Left Front Speaker Negative Connection (in Interior Wiring Harness)
*
Refer to Applicable MMI (Information Electronics) Wiring Diagram
