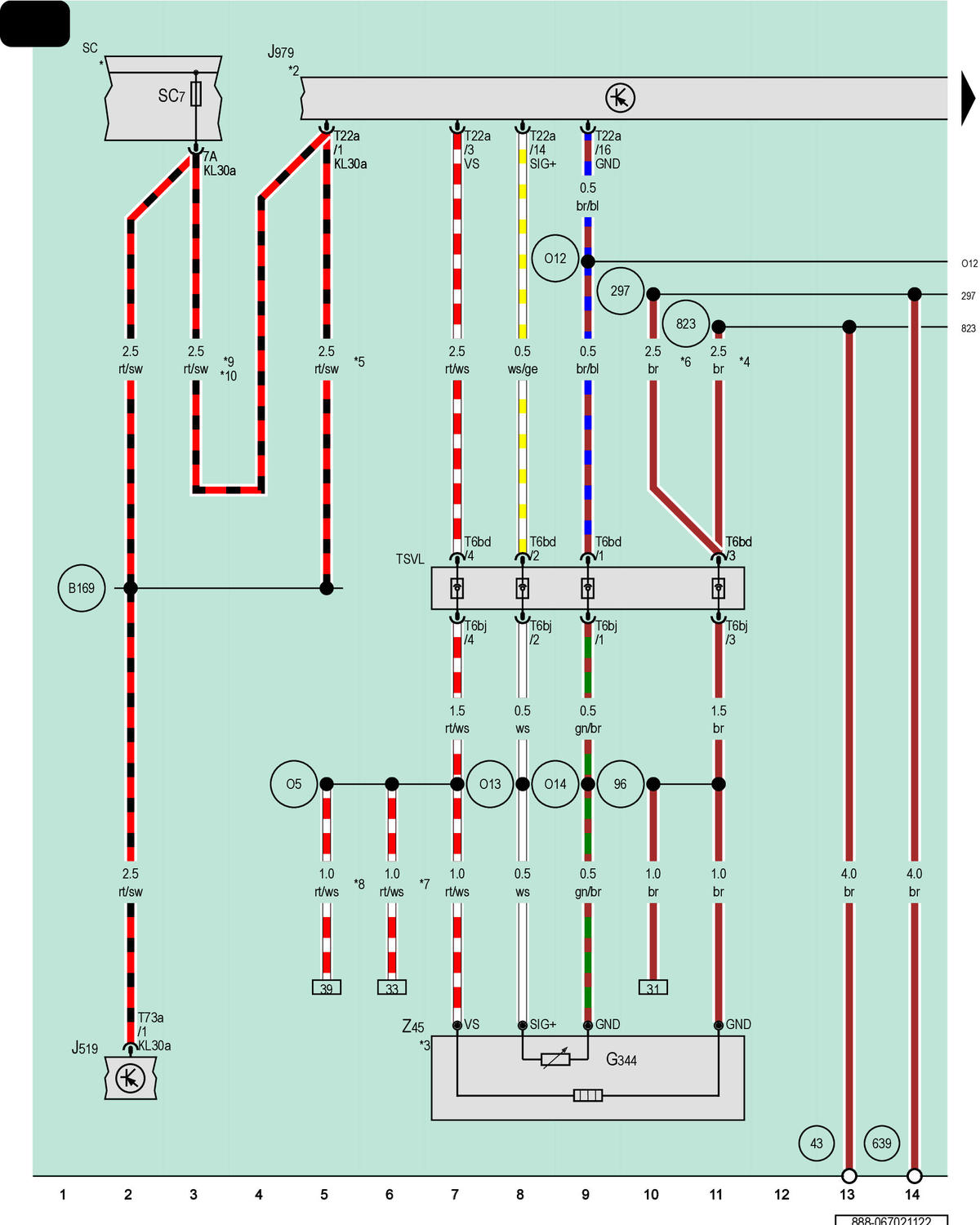

Vehicle Electrical System Control Module, Heating And Air Conditioning Control Module, Fuse Panel C, Left Front Seat Heating Element
G344
Left Front Seat Temperature Sensor
J519
Vehicle Electrical System Control Module
J979
Heating and Air Conditioning Control Module
SC
Fuse Panel C
SC7
Fuse 7 (On Fuse Panel C)
T6bd
6-Pin Connector, Green
T6bj
6-Pin Connector, Green
T22a
22-Pin Connector, Black
T73a
73-Pin Connector, Black
TSVL
Left Front Seat Coupling Station
Z45
Left Front Seat Heating Element
43
Ground Connection on A-Pillar, Lower Right
96
Ground Connection 1 (in Heated Seats Wiring Harness)
297
Ground Connection 12 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
823
Ground Connection 16 (in Interior Wiring Harness)
B169
Positive Connection 1 (30) (in Interior Wiring Harness)
O5
Connection 1 (15a) in Heated Seats Wiring Harness
O12
Connection 1 (in Heated Seats Wiring Harness)
O13
Connection 2 (in Heated Seats Wiring Harness)
O14
Connection 3 (in Heated Seats Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Refer to Applicable A/C System Wiring Diagram
*3
Pre-Wired Component
*4
For RHD Vehicles
*5
Through June 2021
*6
For LHD Vehicles
*7
For Vehicles Without Seat Depth Adjuster
*8
For Vehicles with Seat Depth Adjustment
*9
From June 2021
*10
Depending on Equipment
