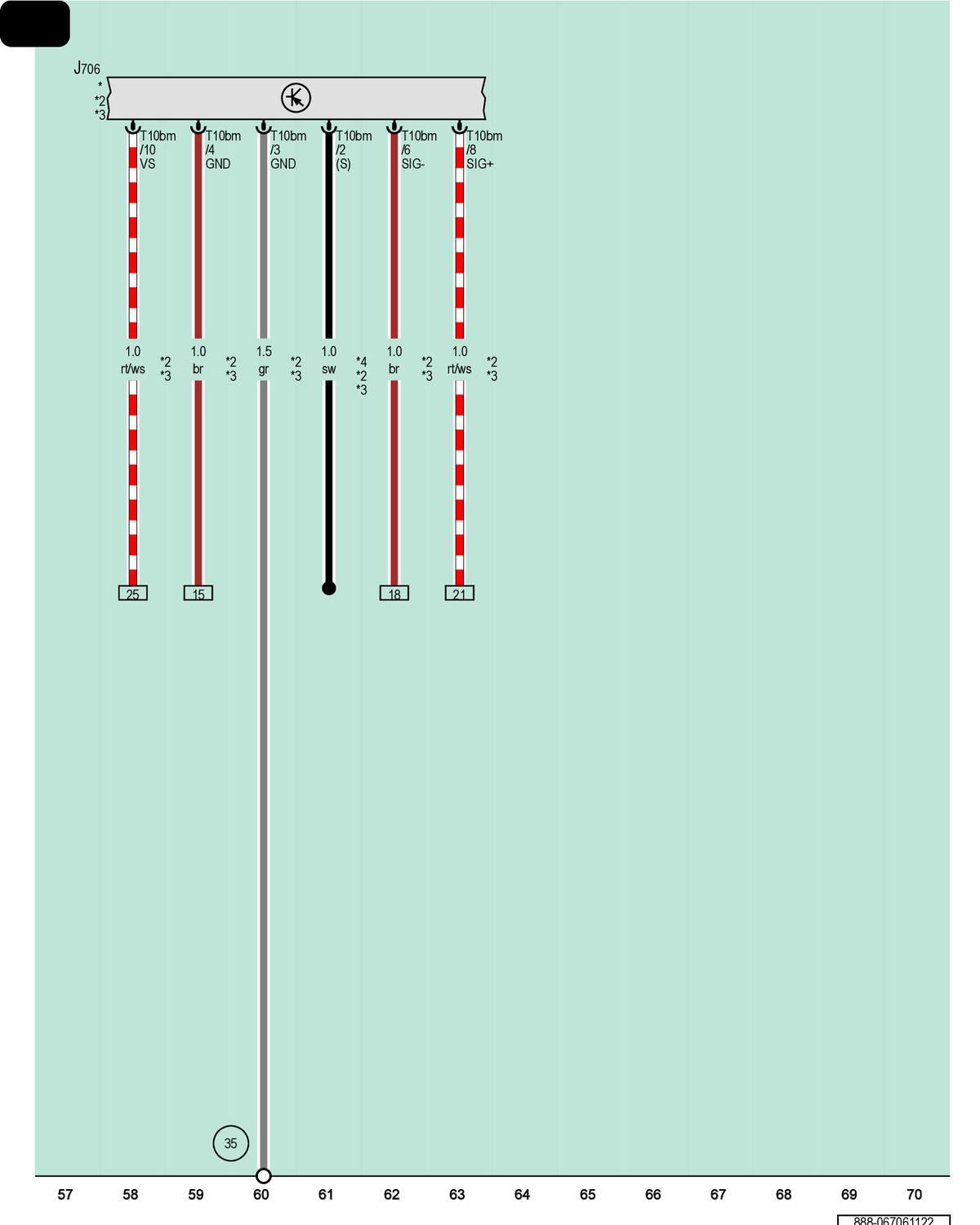

Seat Occupant Detection System Control Module
 Courtesy of AUDI OF AMERICA, LLC
|
J706
Seat Occupant Detection System Control Module
T10bm
10-Pin Connector, Black
35
Ground Connection Under Front Passenger Seat
*
Refer to Applicable Airbag Wiring Diagram
*2
From June 2021
*3
For Vehicles with US Equipment
*4
Open Wire End
