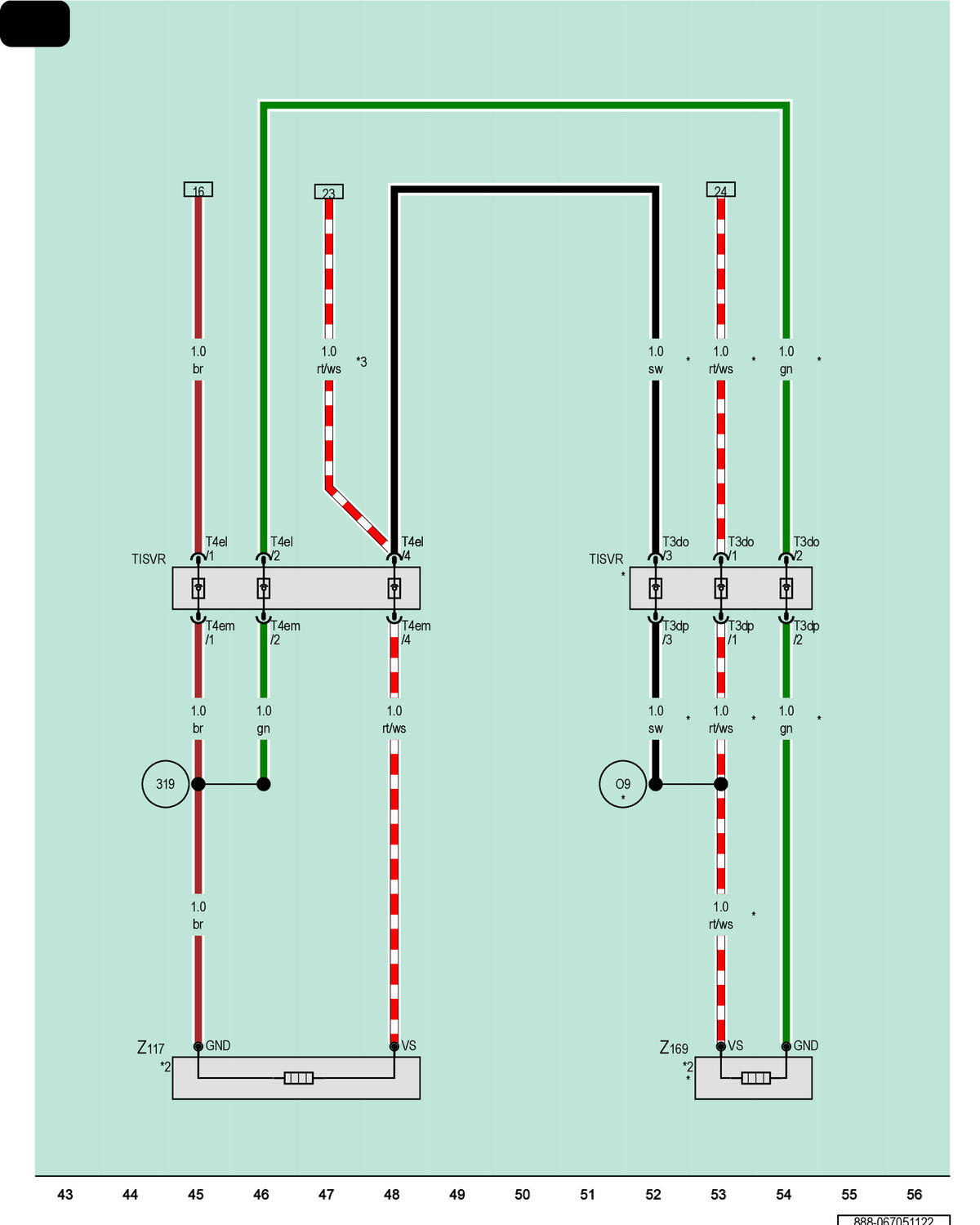

Right Front Seat Heated Backrest, Right Front Seat Extension Heating Element

Courtesy of AUDI OF AMERICA, LLC

T3do

3-Pin Connector, Black

T3dp

3-Pin Connector, Black

T4el

4-Pin Connector, Black

T4em

4-Pin Connector, Black

TISVR

Coupling Station in Right Front Seat

Z117

Right Front Seat Heated Backrest

Z169

Right Front Seat Extension Heating Element

319

Ground Connection 5 (in Heated Seats Wiring Harness)

O9

Positive Connection 2 (15) (in Heated Seats Wiring Harness)

*

For Vehicles with Seat Depth Adjustment

*2

Pre-Wired Component

*3

For Vehicles Without Seat Depth Adjuster
