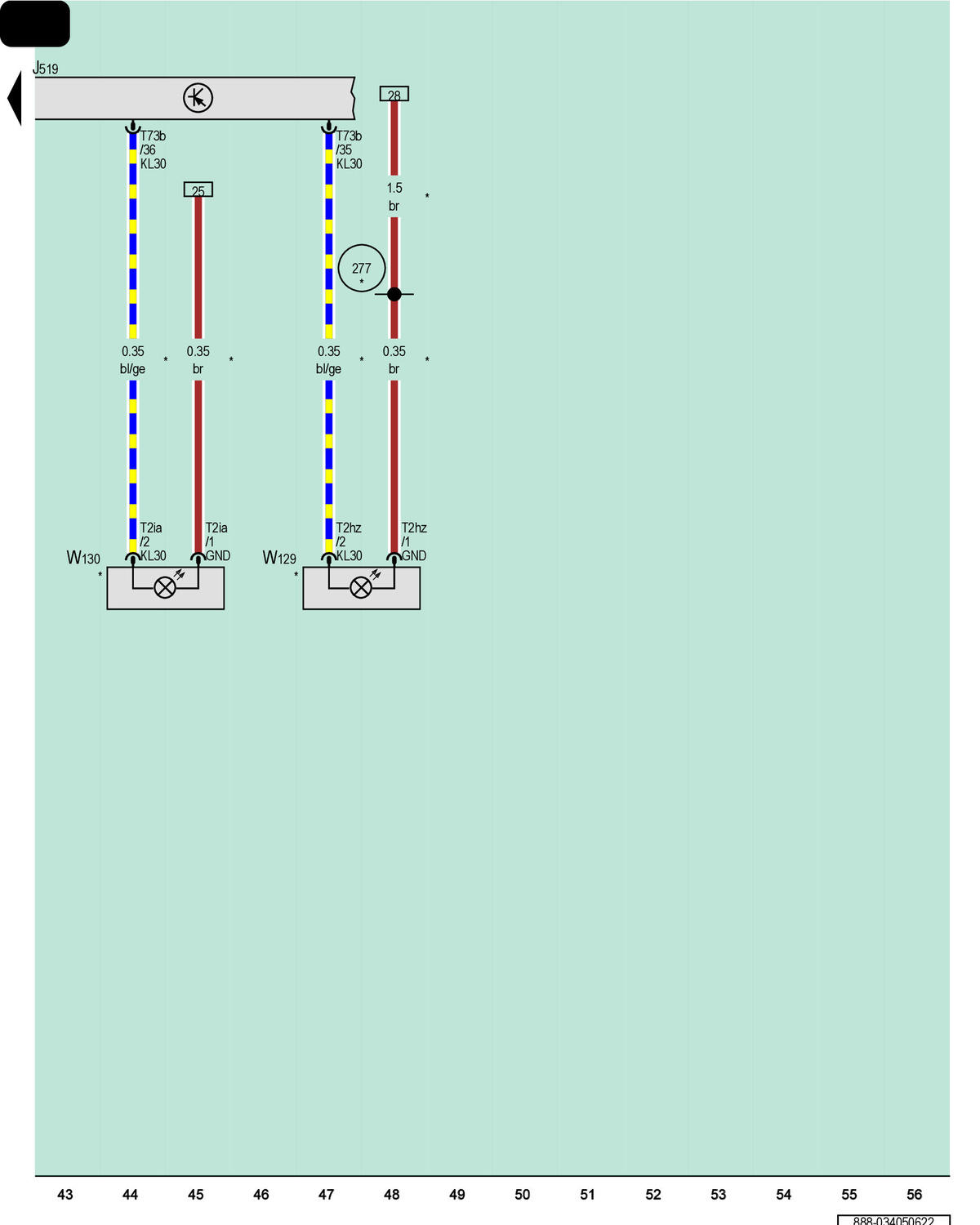

Vehicle Electrical System Control Module, Left Front Entry Lamp Ambient Lighting Bulb, Right Front Entry Lamp Ambient Lighting Bulb

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

T2hz

2-Pin Connector, Black

T2ia

2-Pin Connector, Black

T73b

73-Pin Connector, Black

W129

Left Front Entry Lamp Ambient Lighting Bulb

W130

Right Front Entry Lamp Ambient Lighting Bulb

277

Ground Connection 3 (in Interior Wiring Harness)

*

For Ambient Lighting in the Sill Panel
