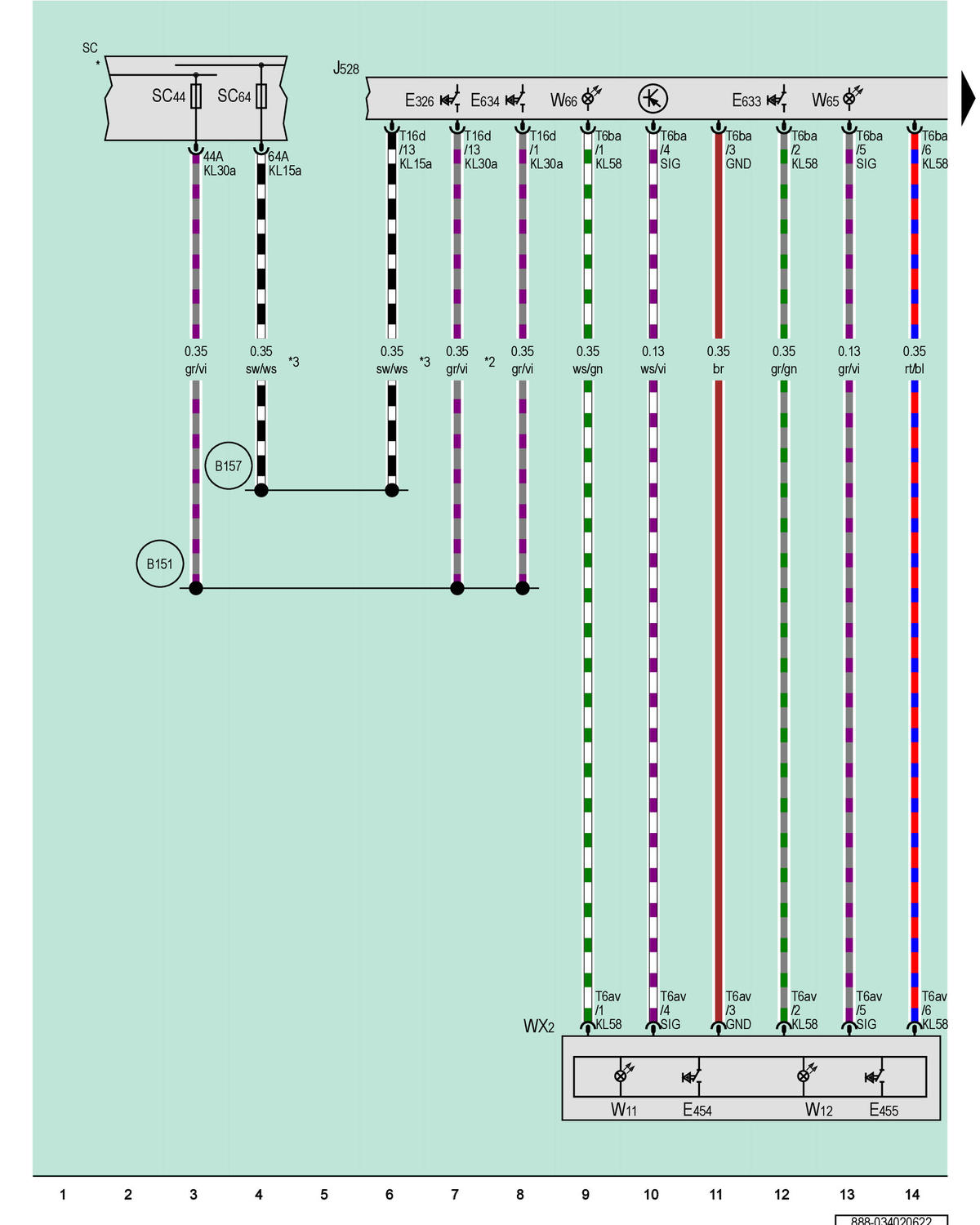

Roof Electronics Control Module, Fuse Panel C, Rear Interior Lamp
E326
Front Interior Lamp Button
E454
Left Rear Reading Lamp Switch
E455
Right Rear Reading Lamp Switch
E633
Left Front Reading Lamp Button
E634
Right Front Reading Lamp Button
J528
Roof Electronics Control Module
SC
Fuse Panel C
SC44
Fuse 44 (On Fuse Panel C)
SC64
Fuse 64 (On Fuse Panel C)
T6av
6-Pin Connector, Black
T6ba
6-Pin Connector, Black
T16d
16-Pin Connector, Brown
WX2
Rear Interior Lamp
W11
Left Rear Reading Lamp
W12
Right Rear Reading Lamp
W65
Left Front Reading Lamp
W66
Right Front Reading Lamp
B151
Positive Connection 3 (30a) (in Interior Wiring Harness)
B157
Positive Connection 3 (15a) (in Interior Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Through April 2020
*3
From April 2020
