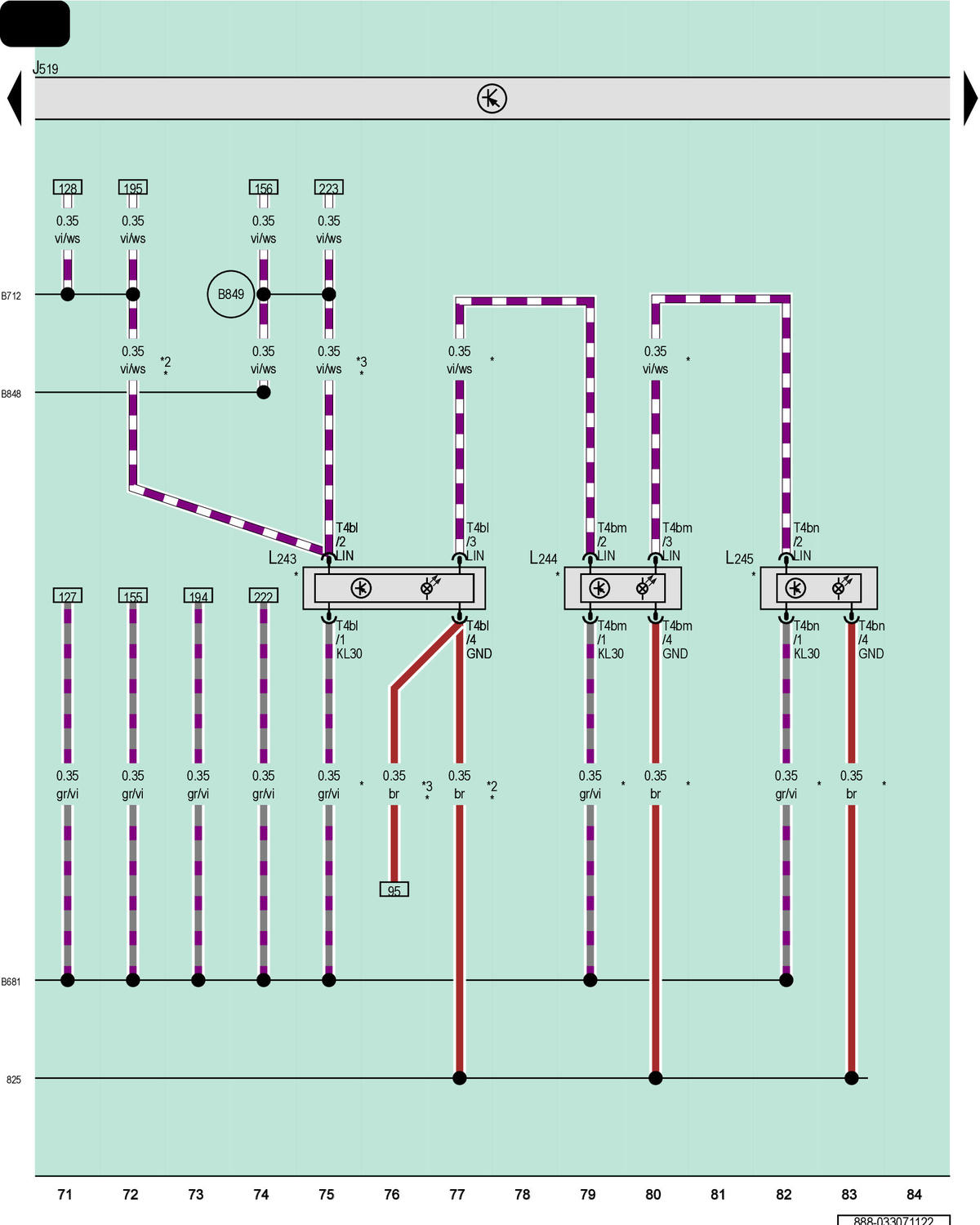

Vehicle Electrical System Control Module, Instrument Panel Contour Illumination Lamp 1, Instrument Panel Contour Illumination Lamp 2, Instrument Panel Contour Illumination Lamp 3
J519
Vehicle Electrical System Control Module
L243
Instrument Panel Contour Illumination Lamp 1
L244
Instrument Panel Contour Illumination Lamp 2
L245
Instrument Panel Contour Illumination Lamp 3
T4bl
4-Pin Connector, Black
T4bm
4-Pin Connector, Black
T4bn
4-Pin Connector, Brown
825
Ground Connection 18 (in Interior Wiring Harness)
B681
Positive Connection 7 (30) (in Interior Wiring Harness)
B712
LIN Bus Connection 7 (in Main Wiring Harness)
B848
LIN Bus Connection 12 (in Main Wiring Harness)
B849
LIN Bus Connection 13 (in Main Wiring Harness)
*
Optional Equipment
*2
For LHD Vehicles
*3
For RHD Vehicles
