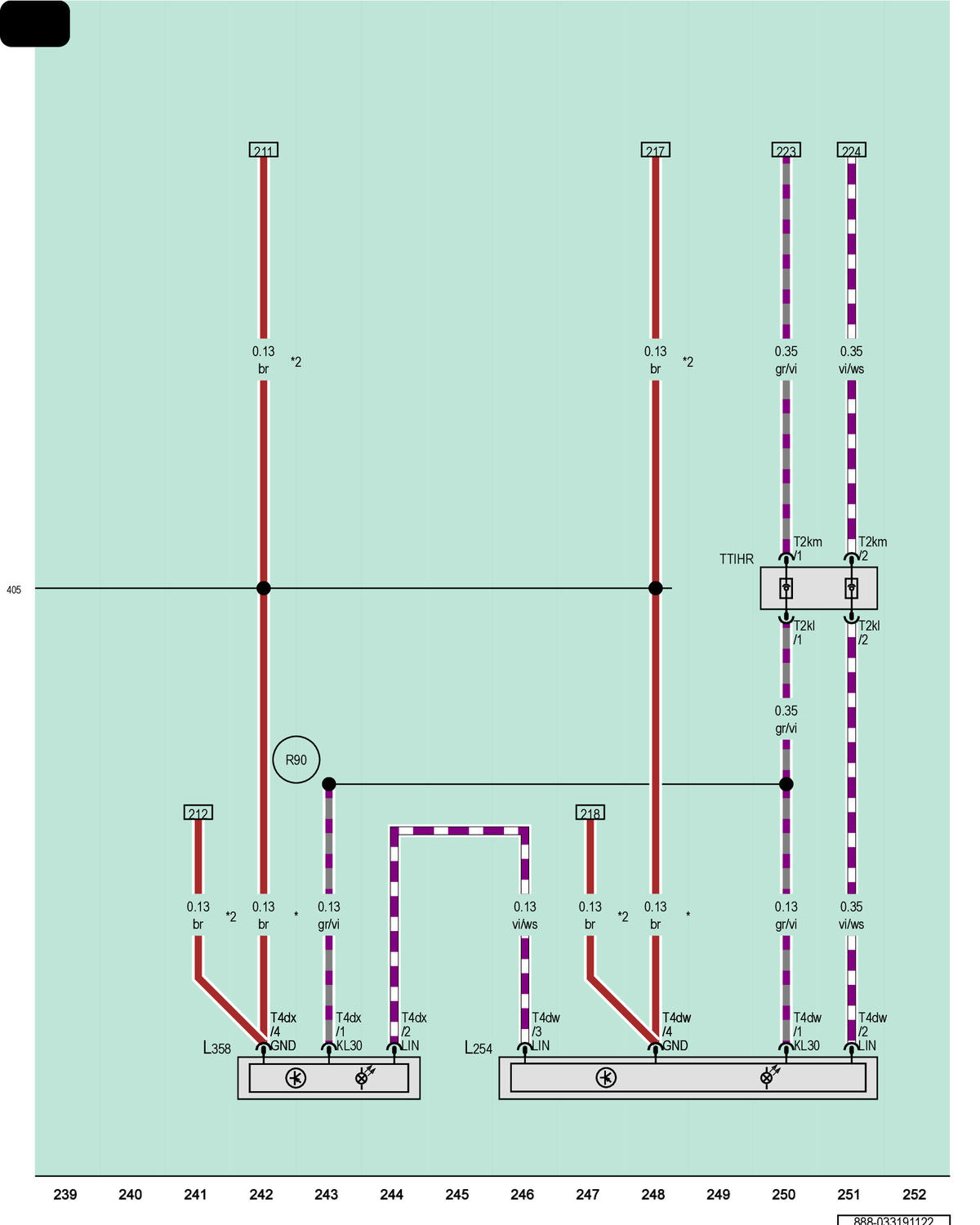

Right Rear Door Contour Illumination Lamp, Right Rear Door Contour Illumination Lamp 4

Courtesy of AUDI OF AMERICA, LLC

L254

Right Rear Door Contour Illumination Lamp

L358

Right Rear Door Contour Illumination Lamp 4

T2kl

2-Pin Connector, Black

T2km

2-Pin Connector, Black

T4dw

4-Pin Connector, Black

T4dx

4-Pin Connector, Brown

TTIHR

Coupling Point in Right Rear Door

405

Ground Connection 4 (in Front Passenger Door Wiring Harness)

R90

Connection 1 (in Right Rear Door Wiring Harness)

*

For LHD Vehicles

*2

For RHD Vehicles
