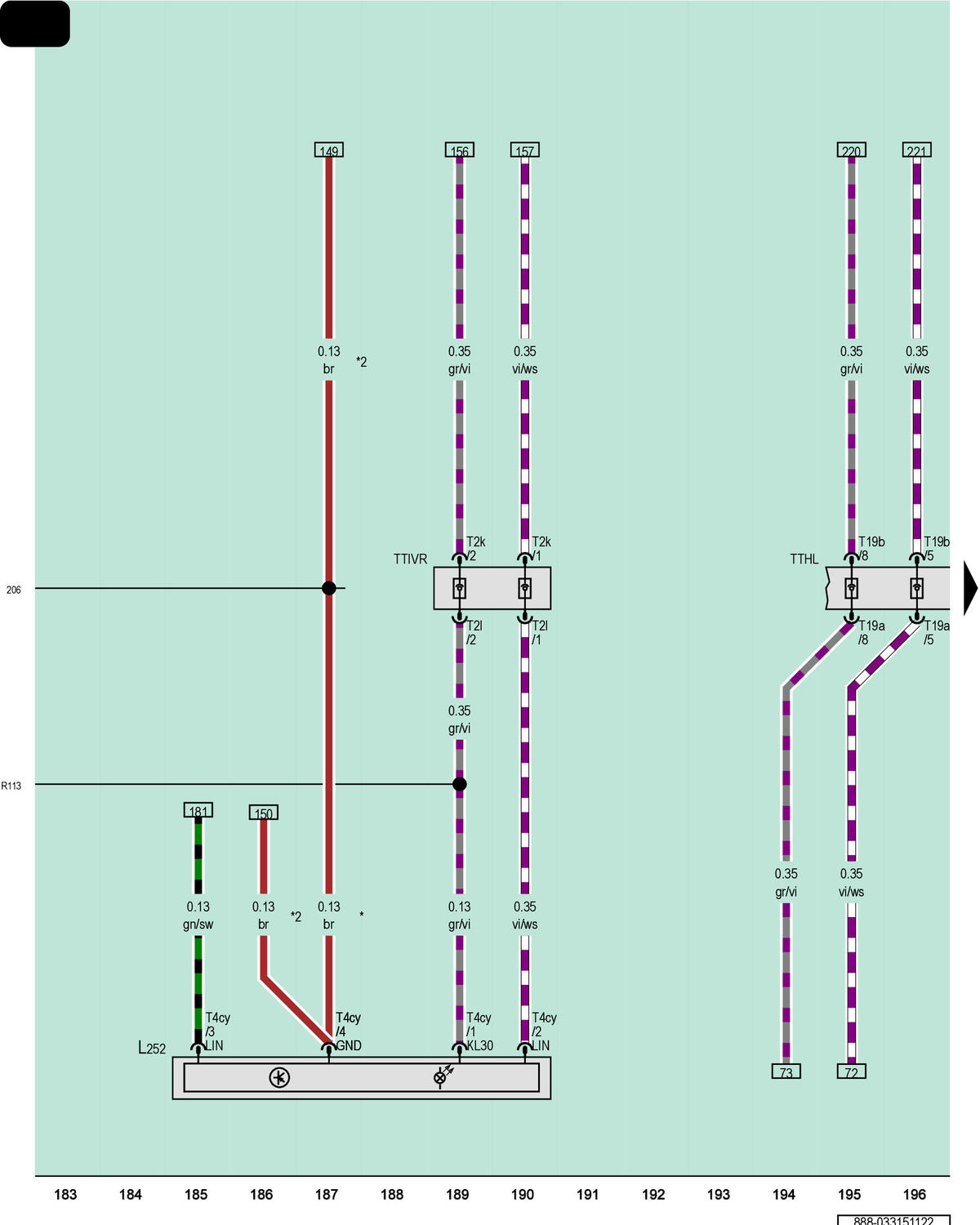

Right Front Door Contour Illumination Lamp

Courtesy of AUDI OF AMERICA, LLC

L252

Right Front Door Contour Illumination Lamp

T2k

2-Pin Connector, Blue

T2l

2-Pin Connector, Blue

T4cy

4-Pin Connector, Black

T19a

19-Pin Connector, Black

T19b

19-Pin Connector, Black

TTHL

Left Rear Door Coupling Point

TTIVR

Coupling Point in Right Front Door

206

Ground Connection (in Front Passenger Door Wiring Harness)

R113

Ambient Lighting Connection (in Right Front Door Wiring Harness)

*

For LHD Vehicles

*2

For RHD Vehicles
