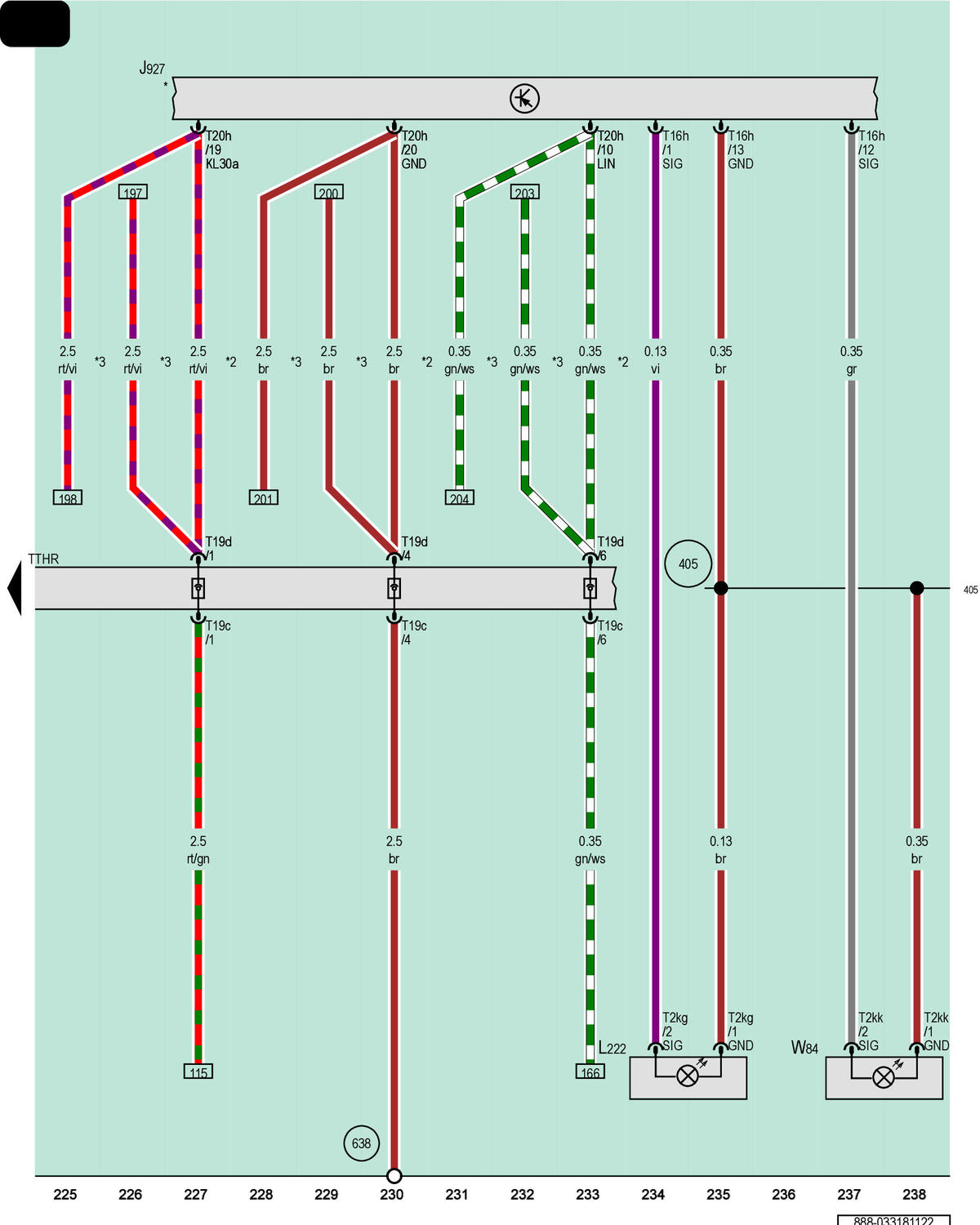

Passenger Side Rear Door Control Module, Passenger Side Rear Interior Door Handle Illumination Bulb, Passenger Side Rear Entry Lamp

Courtesy of AUDI OF AMERICA, LLC

J927

Passenger Side Rear Door Control Module

L222

Passenger Side Rear Interior Door Handle Illumination Bulb

T2kg

2-Pin Connector, Black

T2kk

2-Pin Connector, White

T16h

16-Pin Connector, Black

T19c

19-Pin Connector, Black

T19d

19-Pin Connector, Black

T20h

20-Pin Connector, White

TTHR

Right Rear Door Coupling Point

W84

Passenger Side Rear Entry Lamp

405

Ground Connection 4 (in Front Passenger Door Wiring Harness)

638

Ground Connection on Right A-Pillar

*

Refer to Applicable Convenience System Wiring Diagram

*2

For LHD Vehicles

*3

For RHD Vehicles
