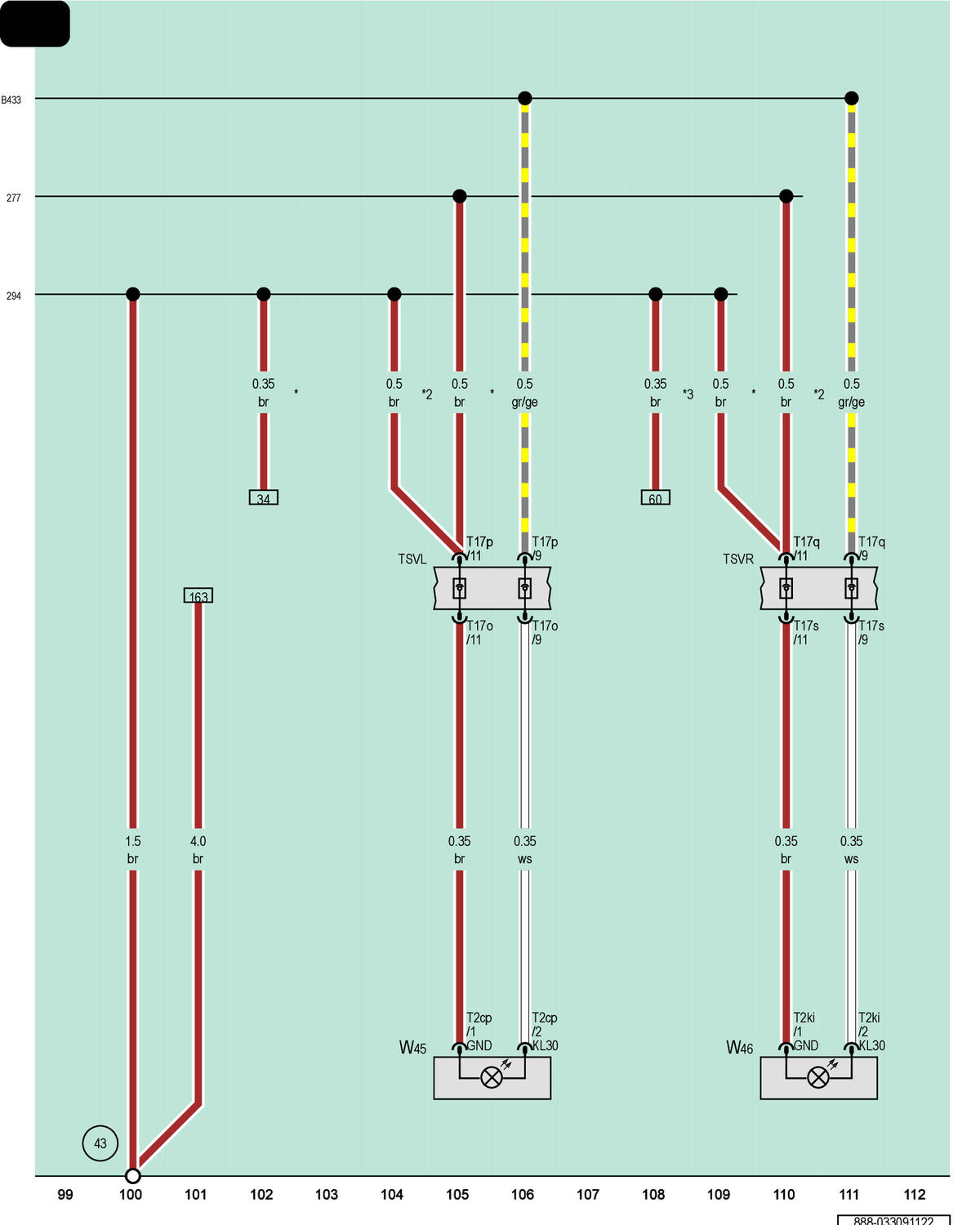

Left Rear FOOTWELL Lamp, Right Rear FOOTWELL Lamp

Courtesy of AUDI OF AMERICA, LLC

T2cp

2-Pin Connector, Brown

T2ki

2-Pin Connector, Brown

T17o

17-Pin Connector, Red

T17p

17-Pin Connector, Red

T17q

17-Pin Connector, Red

T17s

17-Pin Connector, Red

TSVL

Left Front Seat Coupling Station

TSVR

Right Front Seat Coupling Station

W45

Left Rear Footwell Lamp

W46

Right Rear Footwell Lamp

43

Ground Connection on A-Pillar, Lower Right

277

Ground Connection 3 (in Interior Wiring Harness)

294

Ground Connection 9 (in Interior Wiring Harness)

B433

Footwell Illumination Connection (in Main Wiring Harness)

*

For LHD Vehicles

*2

For RHD Vehicles

*3

For Ambient Lighting in the Sill Panel
