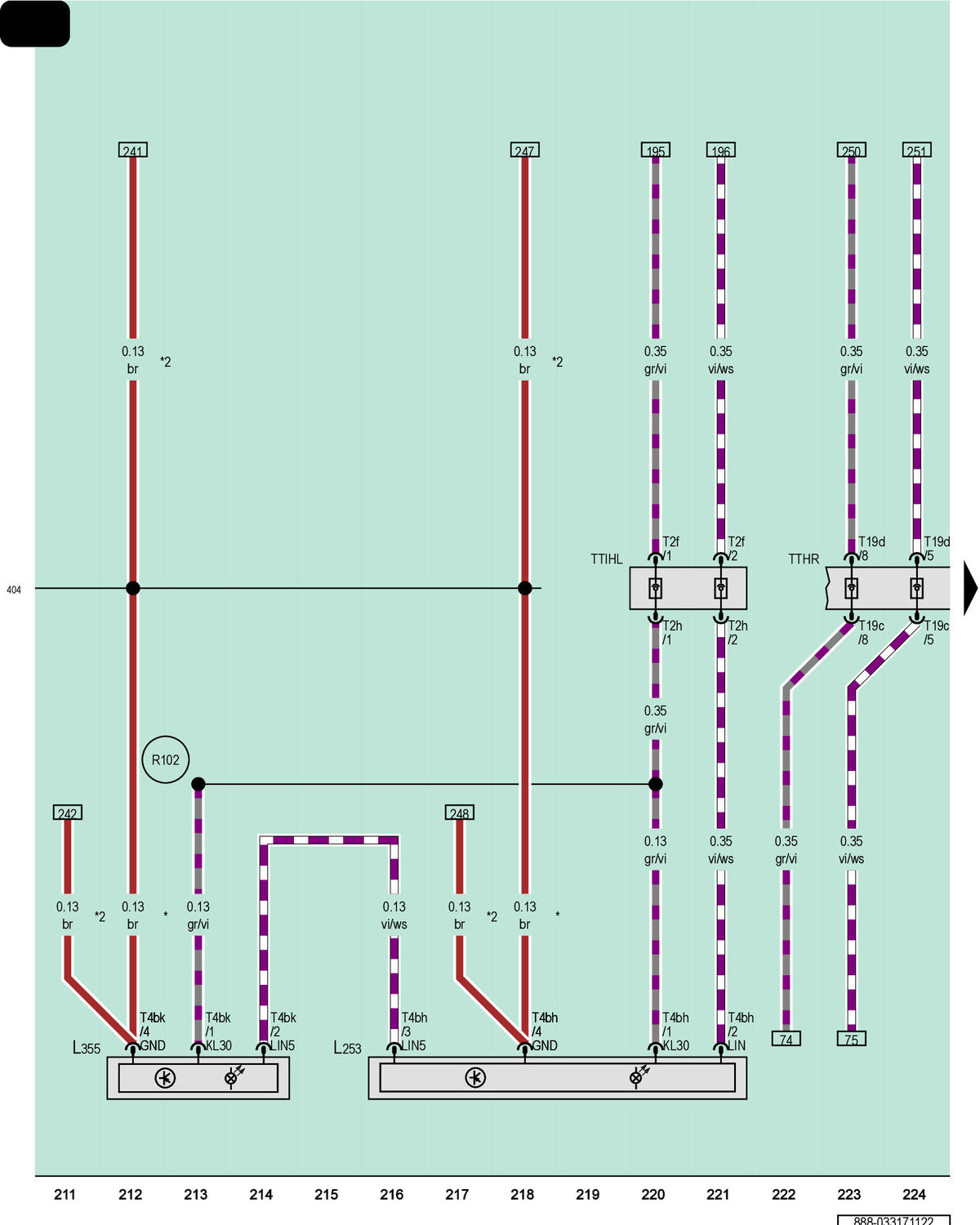

Left Rear Door Contour Illumination Lamp, Left Rear Door Contour Illumination Lamp 4

Courtesy of AUDI OF AMERICA, LLC

L253

Left Rear Door Contour Illumination Lamp

L355

Left Rear Door Contour Illumination Lamp 4

T2f

2-Pin Connector, Black

T2h

2-Pin Connector, Black

T4bh

4-Pin Connector, Black

T4bk

4-Pin Connector, Brown

T19c

19-Pin Connector, Black

T19d

19-Pin Connector, Black

TTHR

Right Rear Door Coupling Point

TTIHL

Coupling Point in Left Rear Door

404

Ground Connection 4 (in Driver Door Wiring Harness)

R102

Connection 2 (in Left Rear Door Wiring Harness)

*

For LHD Vehicles

*2

For RHD Vehicles
