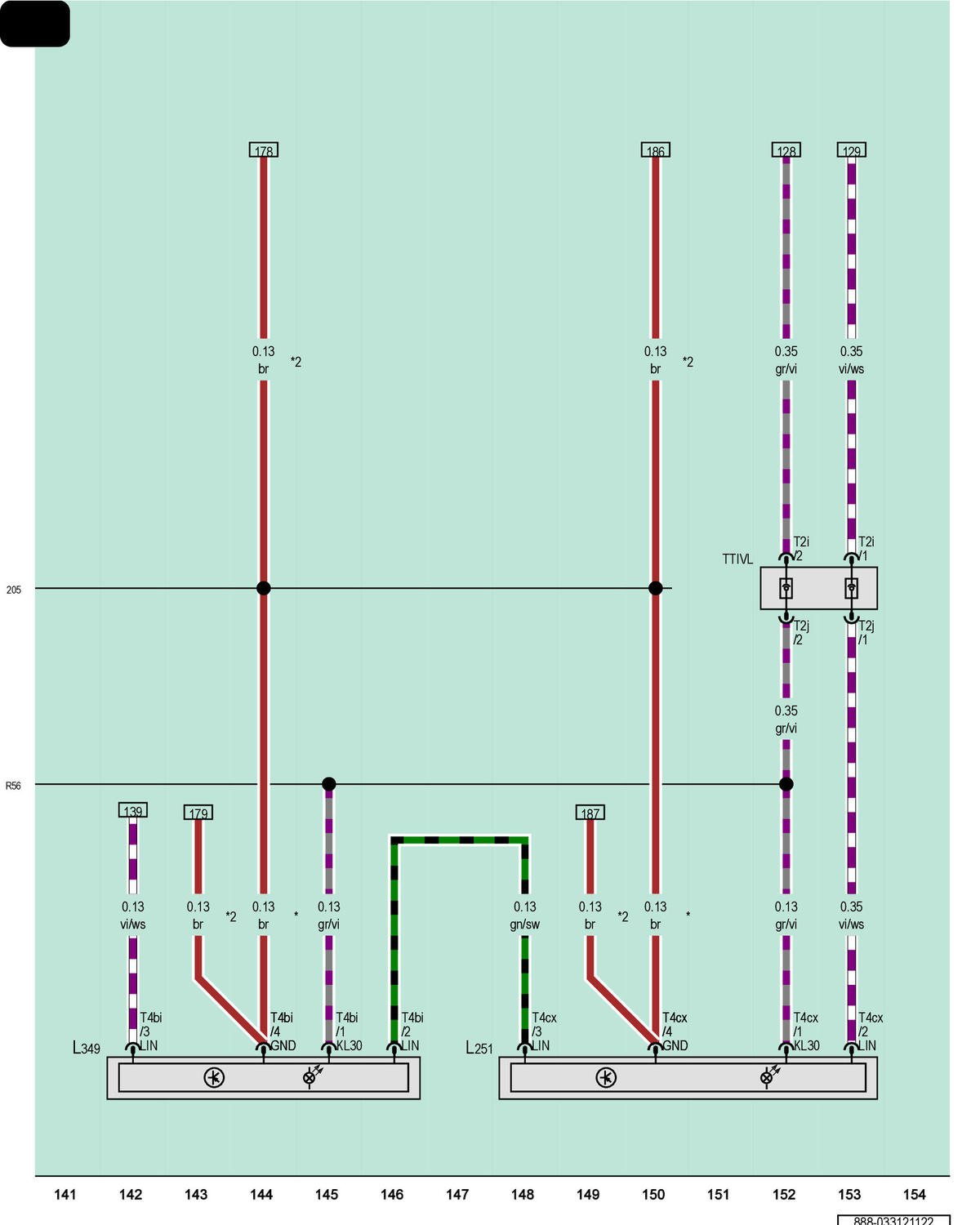

Left Front Door Contour Illumination Lamp, Left Front Door Contour Illumination Lamp 4

Courtesy of AUDI OF AMERICA, LLC

L251

Left Front Door Contour Illumination Lamp

L349

Left Front Door Contour Illumination Lamp 4

T2i

2-Pin Connector, Blue

T2j

2-Pin Connector, Blue

T4bi

4-Pin Connector, Brown

T4cx

4-Pin Connector, Black

TTIVL

Coupling Point in Left Front Door

205

Ground Connection (in Driver Door Wiring Harness)

R56

Entry Lamp Connection (in Driver Door Wiring Harness)

*

For LHD Vehicles

*2

For RHD Vehicles
