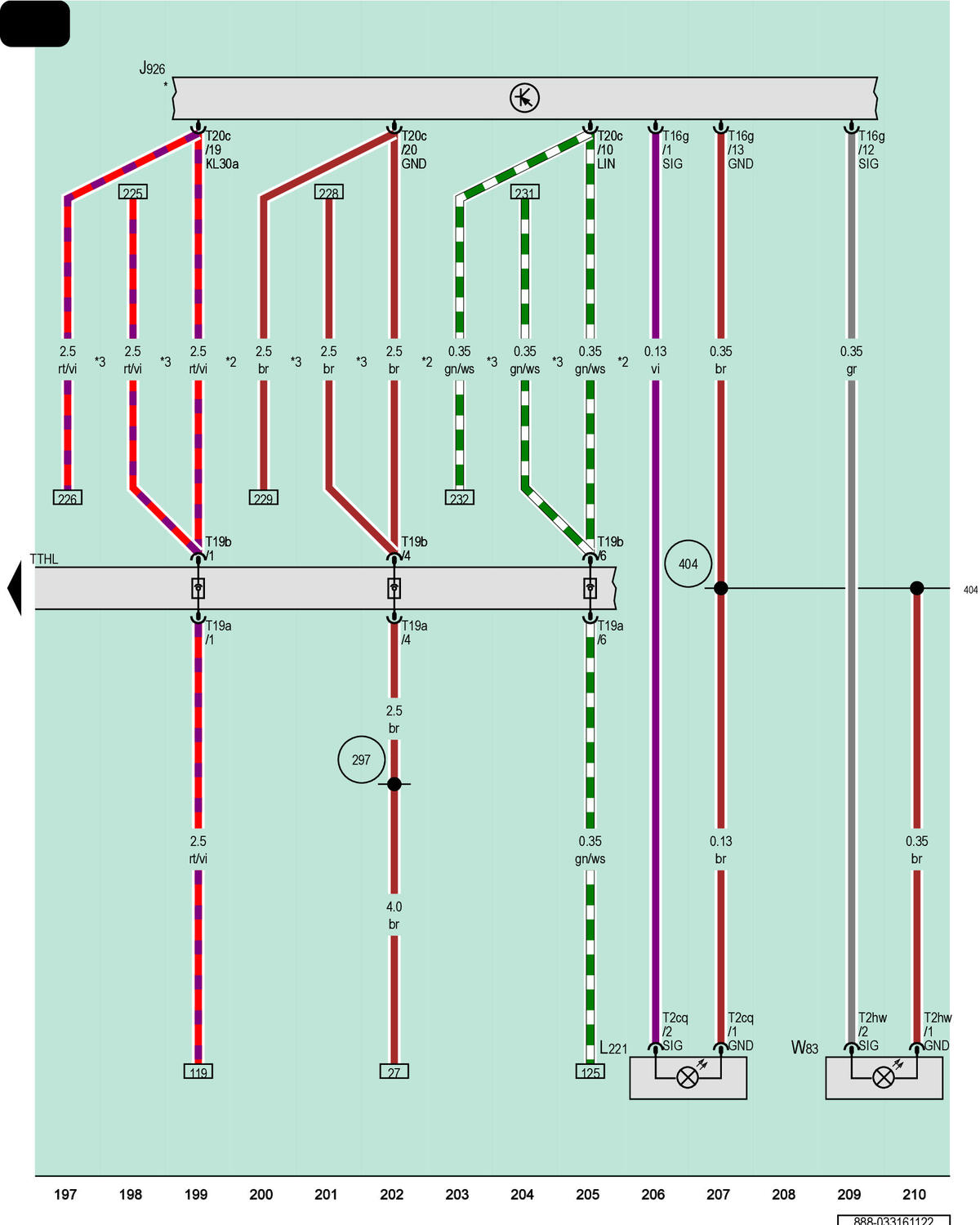

Driver Side Rear Door Control Module, Driver Side Rear Interior Door Handle Illumination Bulb, Driver Side Rear Entry Lamp

Courtesy of AUDI OF AMERICA, LLC

J926

Driver Side Rear Door Control Module

L221

Driver Side Rear Interior Door Handle Illumination Bulb

T2cq

2-Pin Connector, Black

T2hw

2-Pin Connector, White

T16g

16-Pin Connector, Black

T19a

19-Pin Connector, Black

T19b

19-Pin Connector, Black

T20c

20-Pin Connector, White

TTHL

Left Rear Door Coupling Point

W83

Driver Side Rear Entry Lamp

297

Ground Connection 12 (in Interior Wiring Harness)

404

Ground Connection 4 (in Driver Door Wiring Harness)

*

Refer to Applicable Convenience System Wiring Diagram

*2

For LHD Vehicles

*3

For RHD Vehicles
