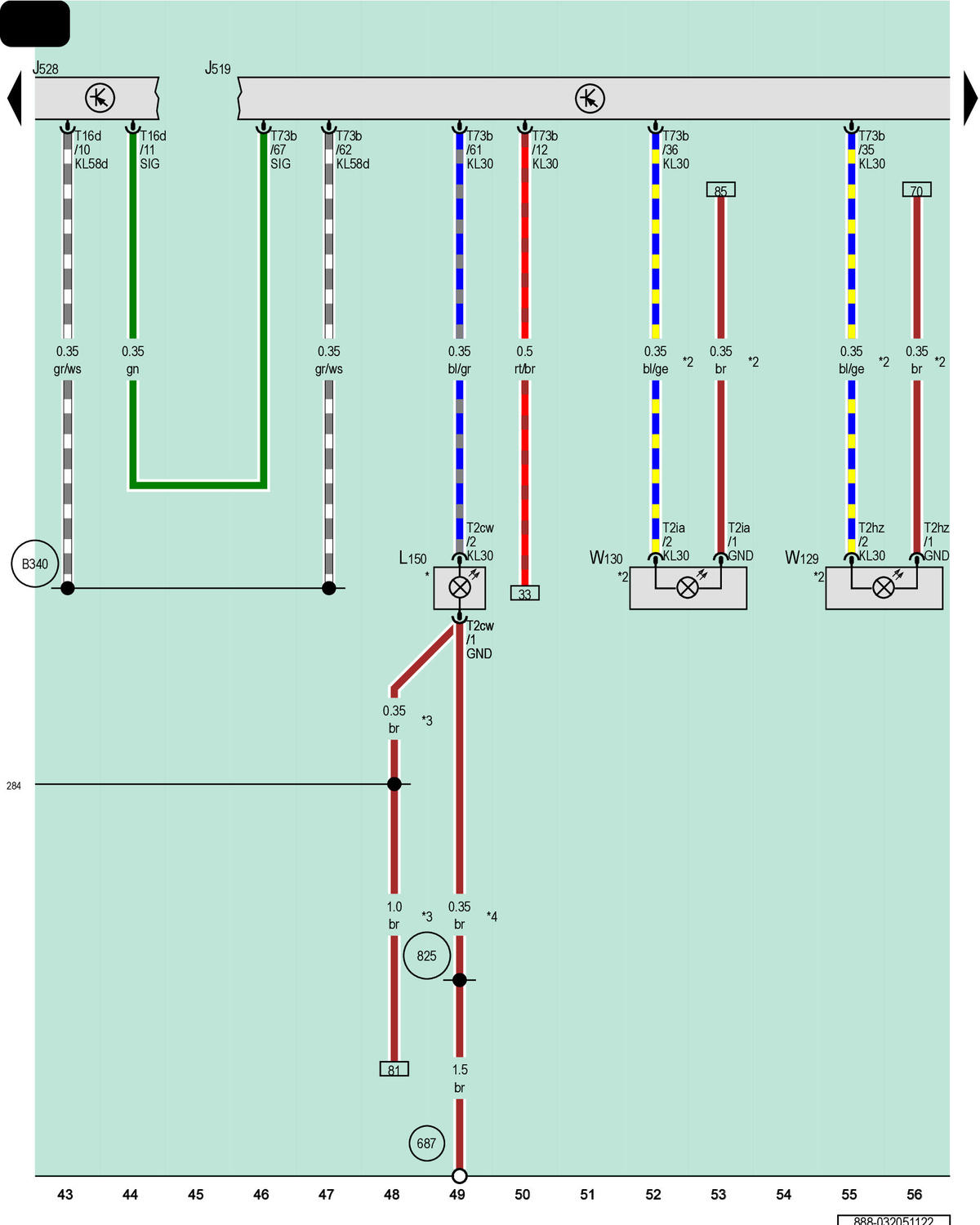

Vehicle Electrical System Control Module, Roof Electronics Control Module, Center Console Illumination Bulb, Left Front Entry Lamp Ambient Lighting Bulb, Right Front Entry Lamp Ambient Lighting Bulb
J519
Vehicle Electrical System Control Module
J528
Roof Electronics Control Module
L150
Center Console Illumination Bulb
T2cw
2-Pin Connector, White
T2hz
2-Pin Connector, Black
T2ia
2-Pin Connector, Black
T16d
16-Pin Connector, Brown
T73b
73-Pin Connector, Black
W129
Left Front Entry Lamp Ambient Lighting Bulb
W130
Right Front Entry Lamp Ambient Lighting Bulb
284
Ground Connection 6 (in Interior Wiring Harness)
687
Ground Connection 1 on Center Tunnel
825
Ground Connection 18 (in Interior Wiring Harness)
B340
Connection 58d (in Main Wiring Harness) 1
*
Pre-Wired Component
*2
For Ambient Lighting in the Sill Panel
*3
For LHD Vehicles
*4
For RHD Vehicles
