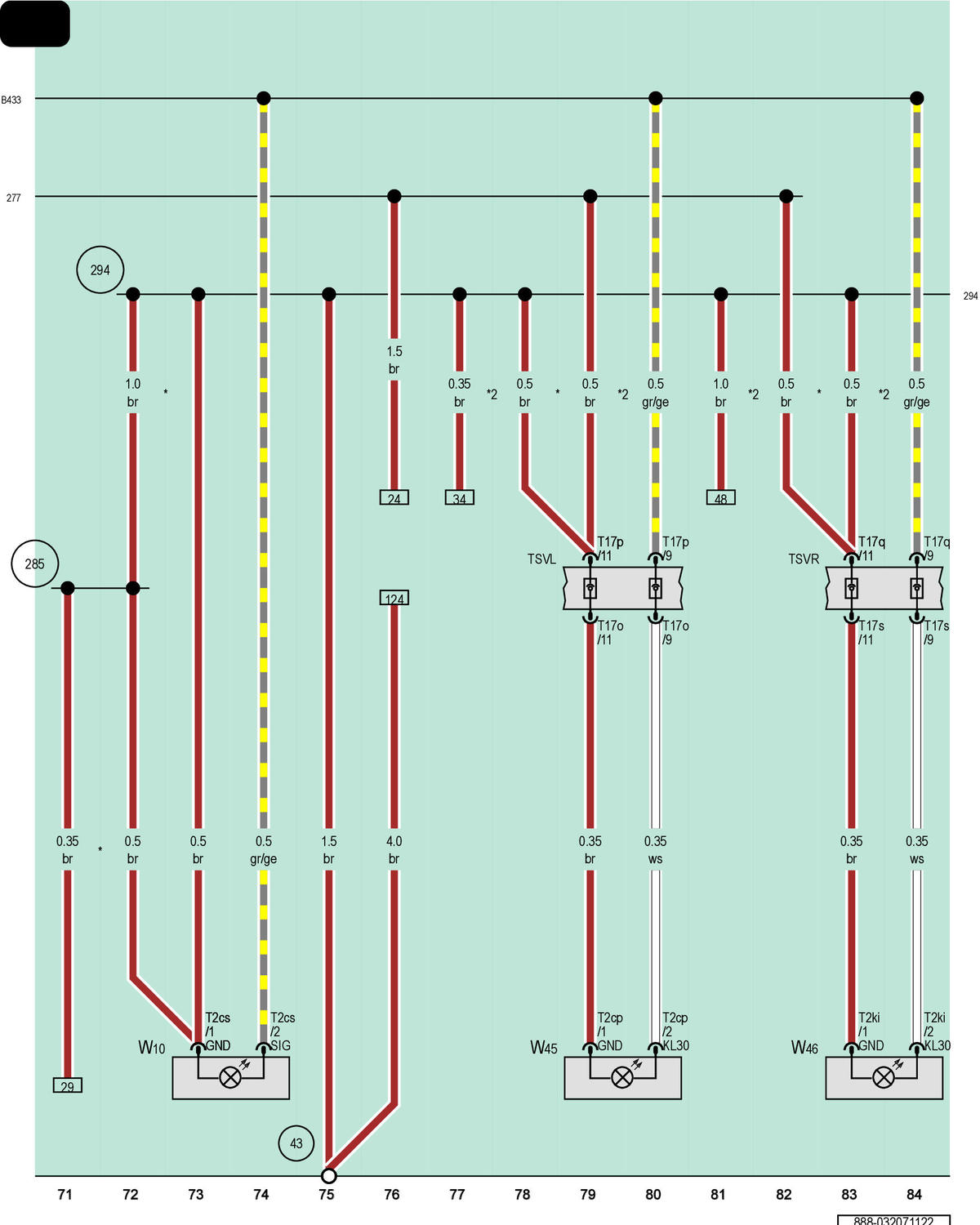

Right FOOTWELL Lamp, Left Rear FOOTWELL Lamp, Right Rear FOOTWELL Lamp

Courtesy of AUDI OF AMERICA, LLC

T2cp

2-Pin Connector, Brown

T2cs

2-Pin Connector, White

T2ki

2-Pin Connector, Brown

T17o

17-Pin Connector, Red

T17p

17-Pin Connector, Red

T17q

17-Pin Connector, Red

T17s

17-Pin Connector, Red

TSVL

Left Front Seat Coupling Station

TSVR

Right Front Seat Coupling Station

W10

Right Footwell Lamp

W45

Left Rear Footwell Lamp

W46

Right Rear Footwell Lamp

43

Ground Connection on A-Pillar, Lower Right

277

Ground Connection 3 (in Interior Wiring Harness)

285

Ground Connection 7 (in Interior Wiring Harness)

294

Ground Connection 9 (in Interior Wiring Harness)

B433

Footwell Illumination Connection (in Main Wiring Harness)

*

For RHD Vehicles

*2

For LHD Vehicles
