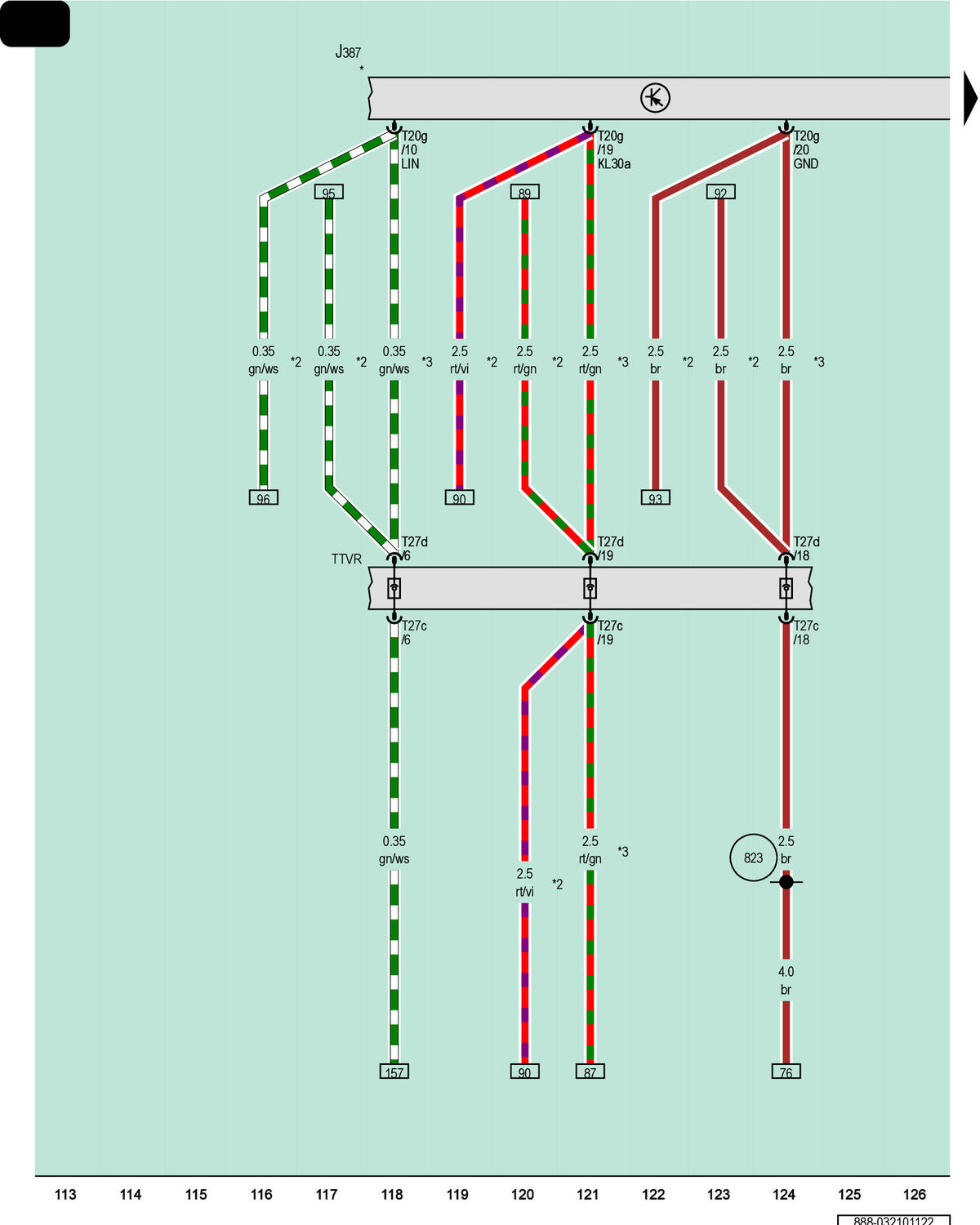

Front Passenger Door Control Module

Courtesy of AUDI OF AMERICA, LLC

J387

Front Passenger Door Control Module

T20g

20-Pin Connector, White

T27c

27-Pin Connector, Black

T27d

27-Pin Connector, Black

TTVR

Right Front Door Coupling Point

823

Ground Connection 16 (in Interior Wiring Harness)

*

Refer to Applicable Front Passenger Door Wiring Diagram

*2

For RHD Vehicles

*3

For LHD Vehicles
