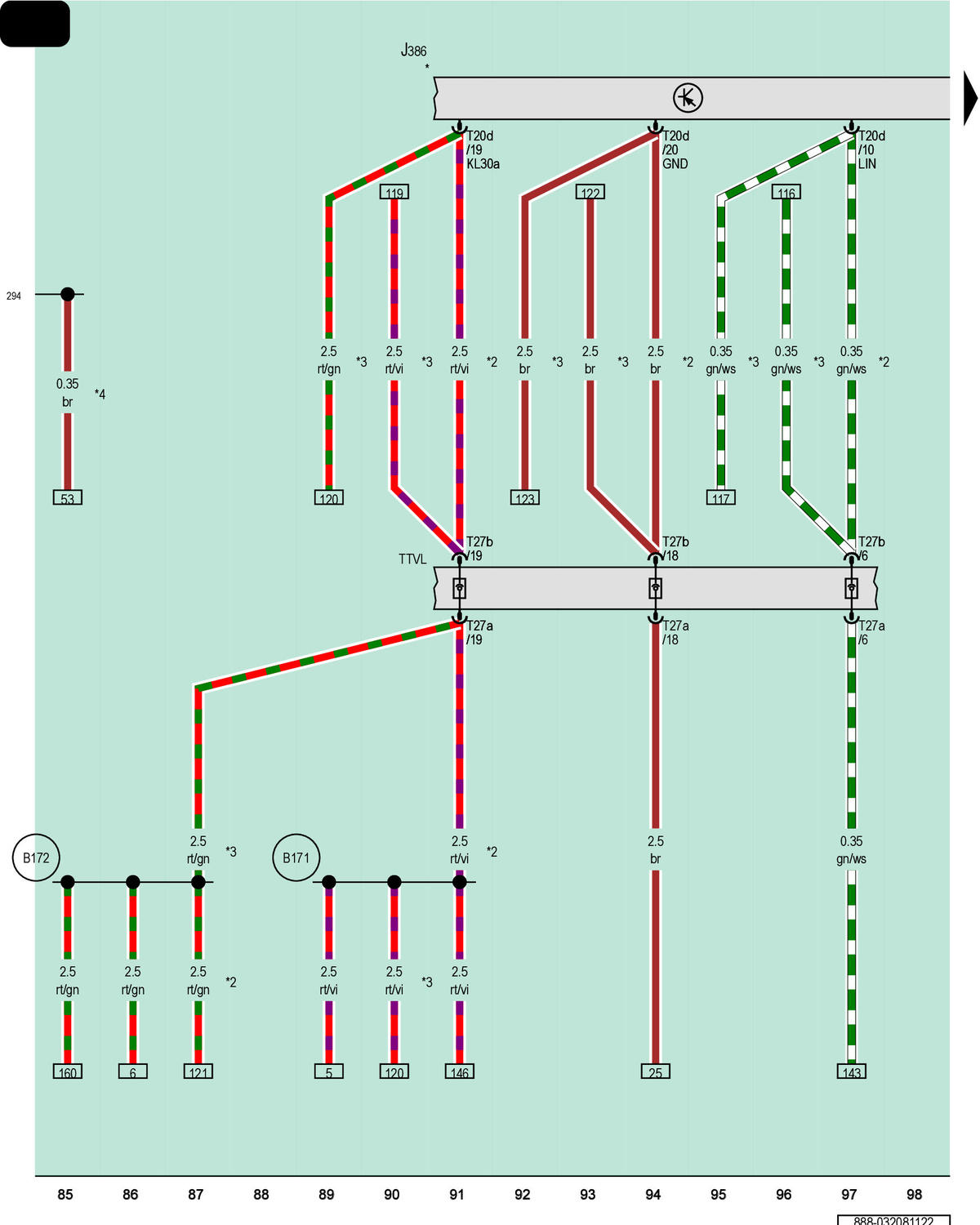

Driver Door Control Module

Courtesy of AUDI OF AMERICA, LLC

J386

T20d

20-Pin Connector, White

T27a

27-Pin Connector, Black

T27b

27-Pin Connector, Black

TTVL

Left Front Door Coupling Point

294

Ground Connection 9 (in Interior Wiring Harness)

B171

Positive Connection 3 (30) (in Interior Wiring Harness)

B172

Positive Connection 4 (30) (in Interior Wiring Harness)

Refer to Applicable Driver Door Wiring Diagram

For LHD Vehicles

For RHD Vehicles

For Ambient Lighting in the Sill Panel
