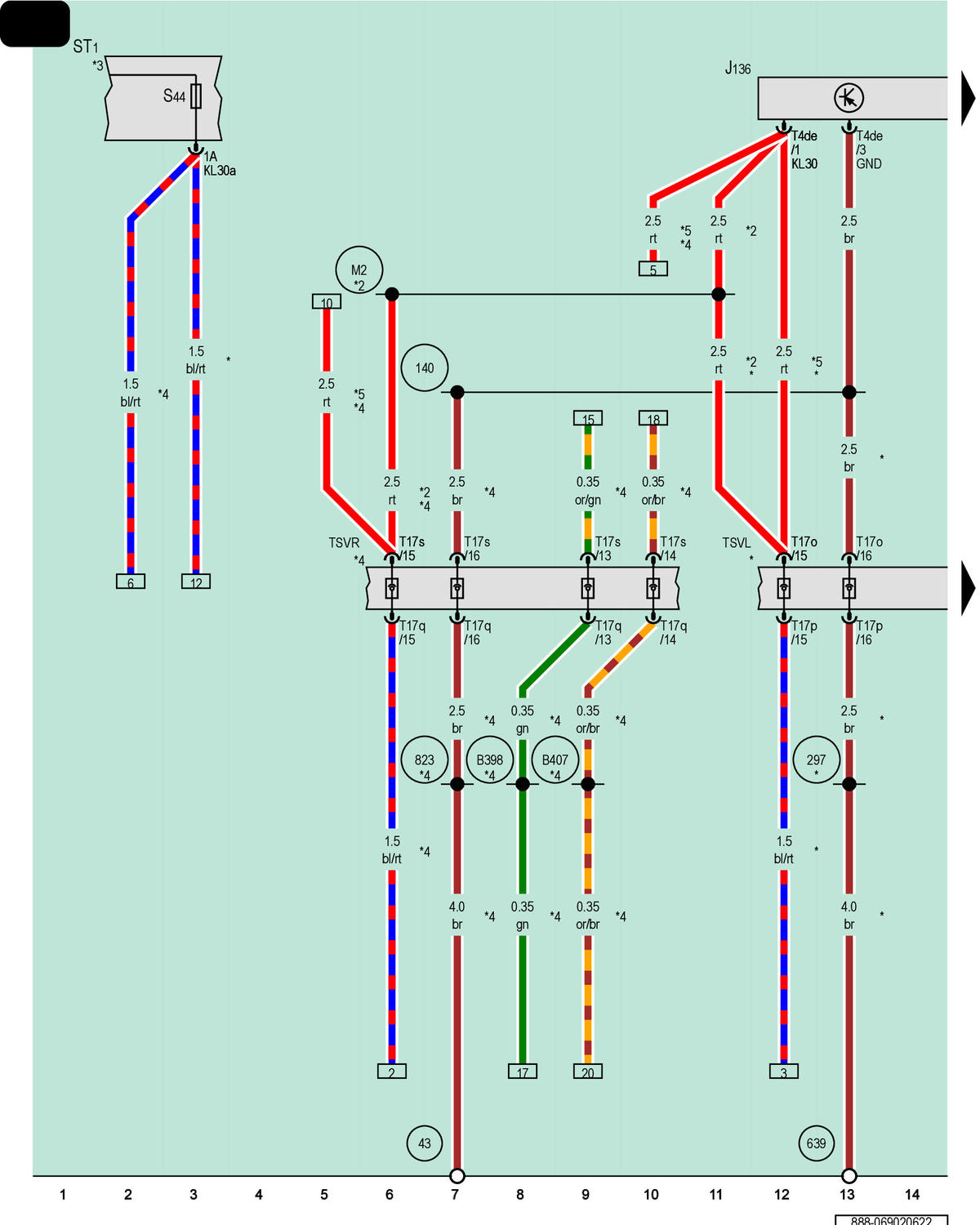

Memory Seat/Steering Column Adjustment Control Module, Fuse Panel 1
J136
Memory Seat/Steering Column Adjustment Control Module
ST1
Fuse Panel 1
S44
Driver Power Seat Adjustment Circuit Breaker 1
T4de
4-Pin Connector, Black
T17o
17-Pin Connector, Red
T17p
17-Pin Connector, Red
T17q
17-Pin Connector, Red
T17s
17-Pin Connector, Red
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
43
Ground Connection on A-Pillar, Lower Right
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
297
Ground Connection 12 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
823
Ground Connection 16 (in Interior Wiring Harness)
B398
Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
M2
Positive Connection 2 (30) (in Seat Adjustment Wiring Harness)
*
For LHD Vehicles
*2
For Vehicles Without Power Lumbar Support Adjustment
*3
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*4
For RHD Vehicles
*5
For Vehicles with Power Lumbar Support Adjustment
