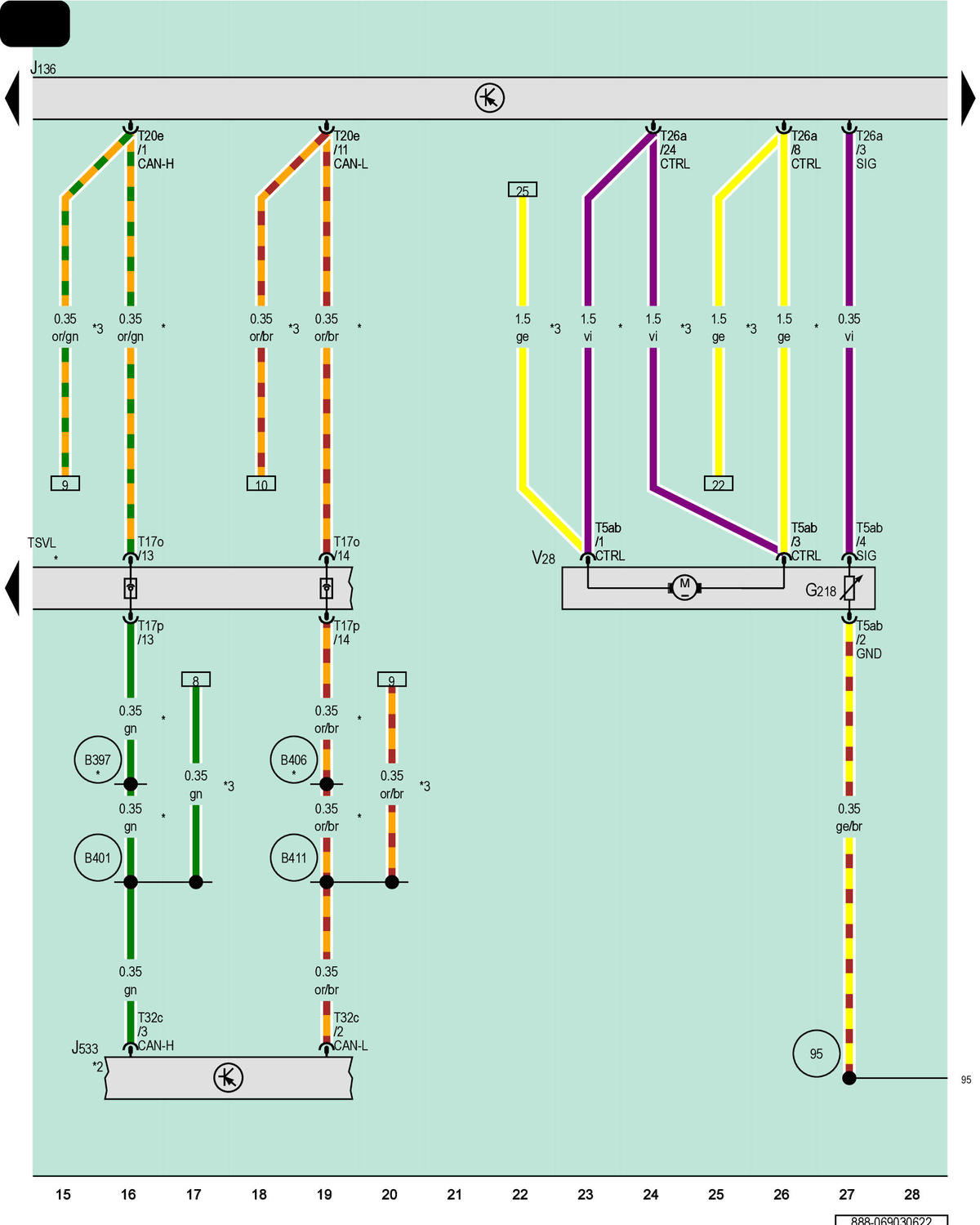

Memory Seat/Steering Column Adjustment Control Module, Data Bus On Board Diagnostic Interface, Driver Seat Forward/Back Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

G218

Driver Seat Forward/Back Adjustment Sensor

J136

Memory Seat/Steering Column Adjustment Control Module

J533

Data Bus on Board Diagnostic Interface

T5ab

5-Pin Connector, Brown

T17o

17-Pin Connector, Red

T17p

17-Pin Connector, Red

T20e

20-Pin Connector, Black

T26a

26-Pin Connector, White

T32c

32-Pin Connector, Black

TSVL

Left Front Seat Coupling Station

V28

Driver Seat Forward/Back Adjustment Motor

95

Ground Connection 1 (in Seat Adjustment Wiring Harness)

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B401

Comfort System CAN Bus High Connection 5 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B411

Comfort System CAN Bus Low Connection 6 (in Main Wiring Harness)

*

For LHD Vehicles

*2

Refer to Applicable Wiring Diagram for Data Bus Networking

*3

For RHD Vehicles
