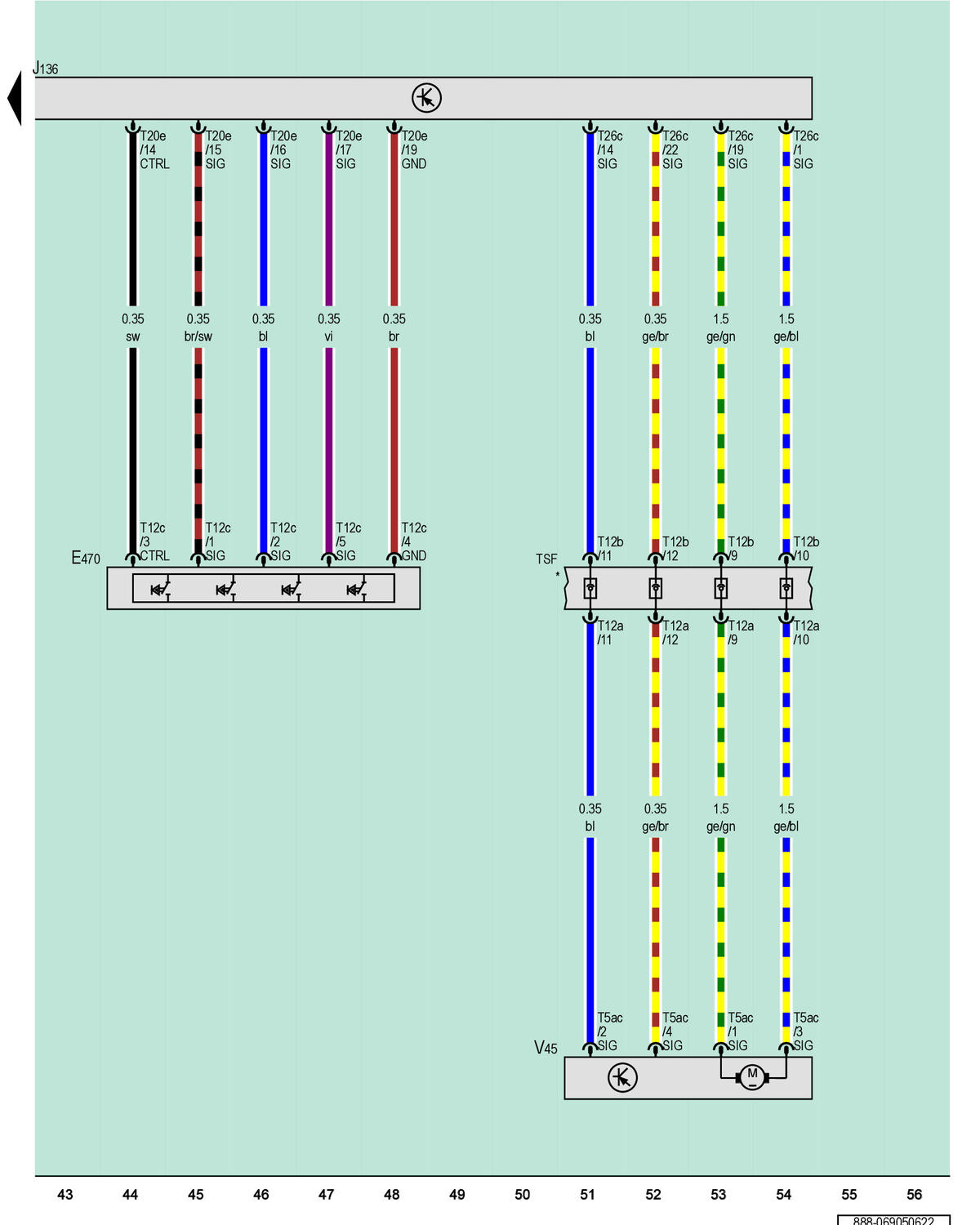

Driver Seat Adjustment Control Head, Memory Seat/Steering Column Adjustment Control Module, Driver Backrest Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E470

Driver Seat Adjustment Control Head

J136

Memory Seat/Steering Column Adjustment Control Module

T5ac

5-Pin Connector, Brown

T12a

12-Pin Connector, Black

T12b

12-Pin Connector, Black

T12c

12-Pin Connector, Black

T20e

20-Pin Connector, Black

T26c

26-Pin Connector, Blue

TSF

Driver Seat Backrest Coupling Point

V45

Driver Backrest Adjustment Motor

*

Component Contained in Driver Side Area for RHD Vehicles
