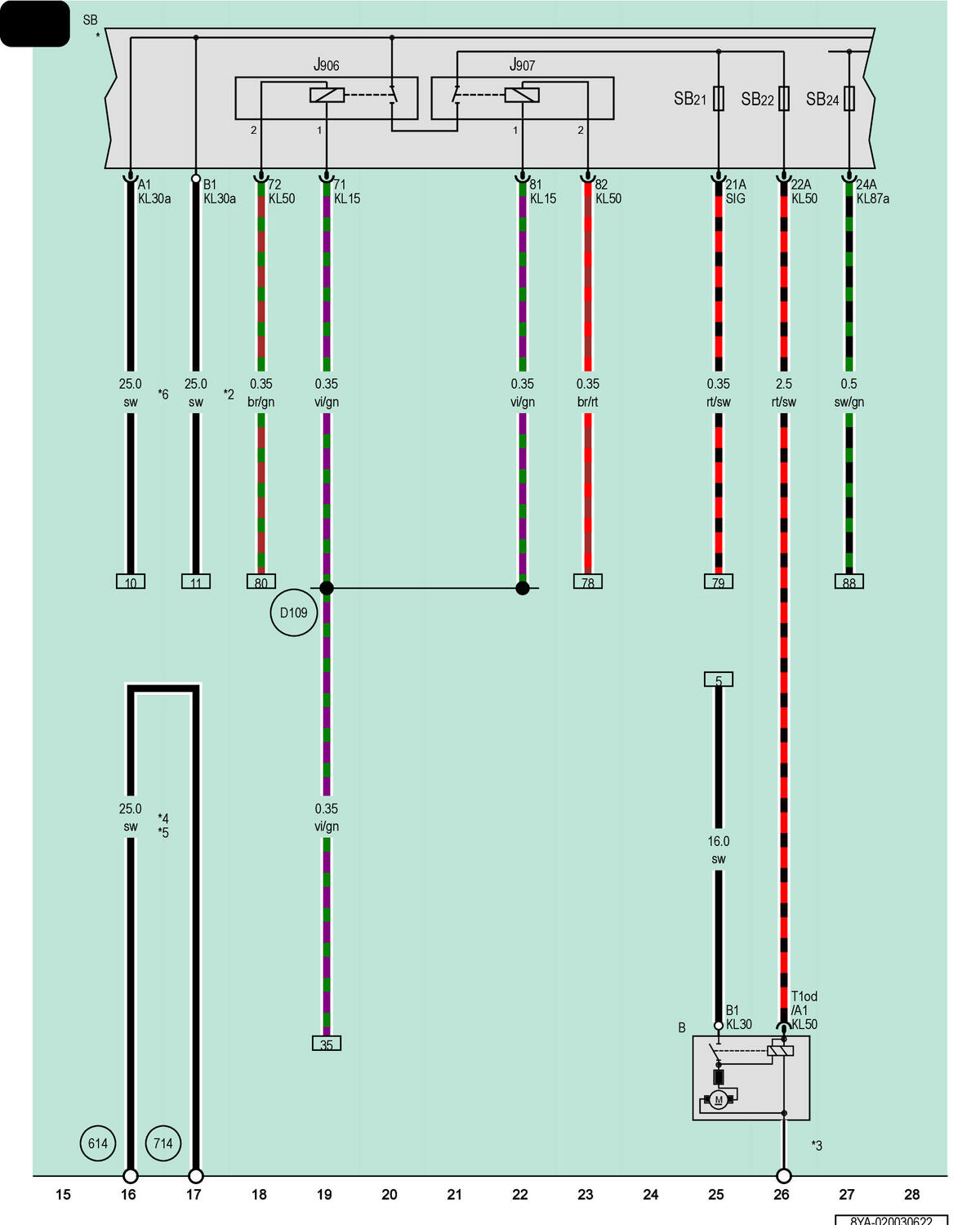

Starter, Fuse Panel B

Courtesy of AUDI OF AMERICA, LLC

B

Starter

J906

Starter Relay 1

J907

Starter Relay 2

SB

Fuse Panel B

SB21

Fuse 21 (On Fuse Panel B)

SB22

Fuse 22 (On Fuse Panel B)

SB24

Fuse 24 (On Fuse Panel B)

T1od

1-Pin Connector, Black

614

Ground Connection 2 in Engine/Motor Compartment, Right

714

Ground Connection on Engine, Right

D109

Connection 7 (in Engine/Motor Compartment Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*2

Through June 2022

*3

Ground Supply via the Housing

*4

Diameter Depends on Equipment

*5

The Color of the Wires Depends on Vehicle Equipment

*6

From June 2022
