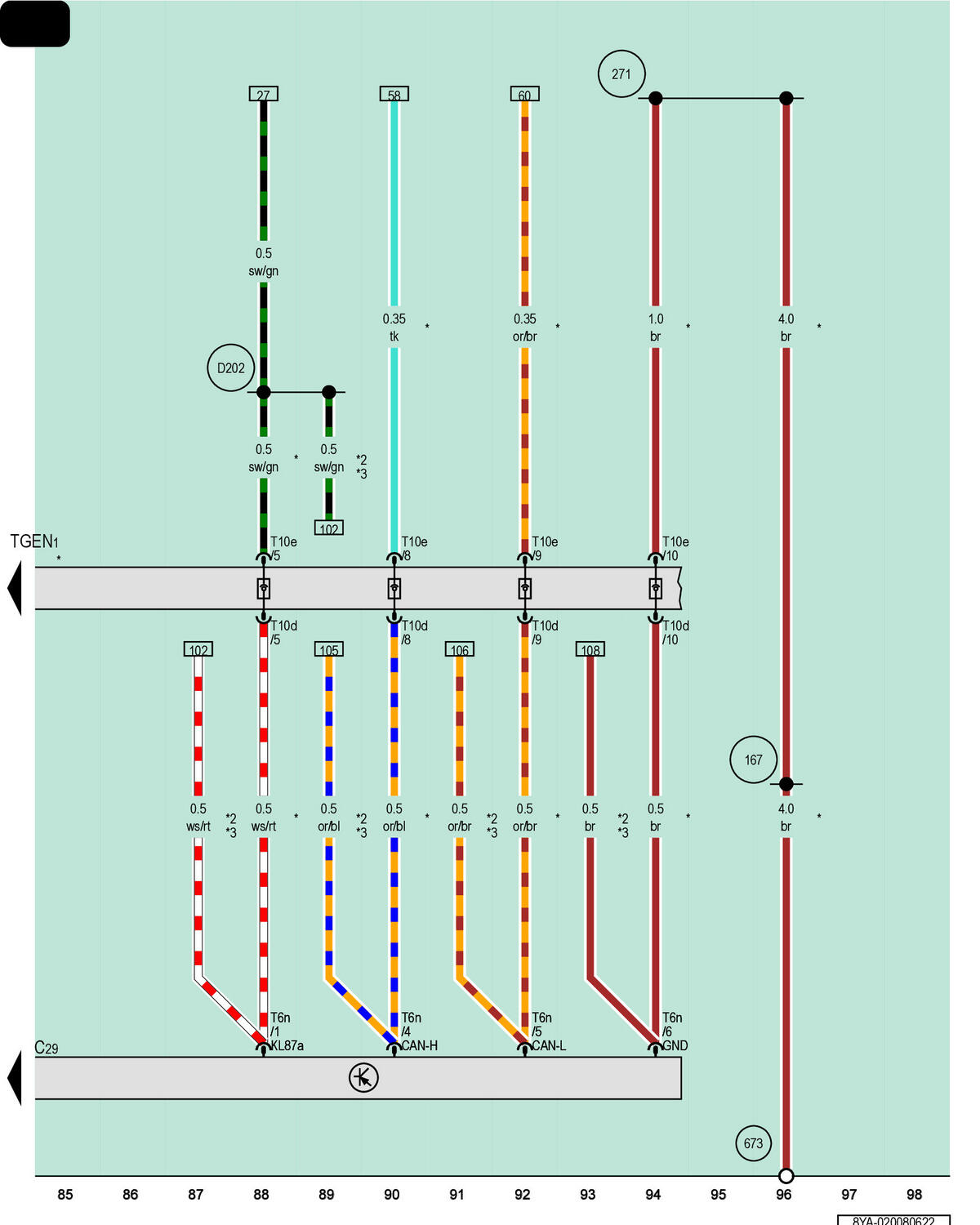

Starter Generator
C29
Starter Generator
T6n
6-Pin Connector, Brown
T10d
10-Pin Connector, Black
T10e
10-Pin Connector, Black
TGEN1
Generator Coupling Point 1
167
Ground Connection 4 (in Engine/Motor Compartment Wiring Harness)
271
Ground Connection 3 (in Front Wiring Harness)
673
Ground Connection 3 on Left Front Longitudinal Member
D202
Connection 6 (87A) (in Engine/Motor Compartment Wiring Harness)
*
For Emissions Standard Euro 6 AP
*2
For LEV3/Tier 3 70 Emissions Standard
*3
From June 2021
