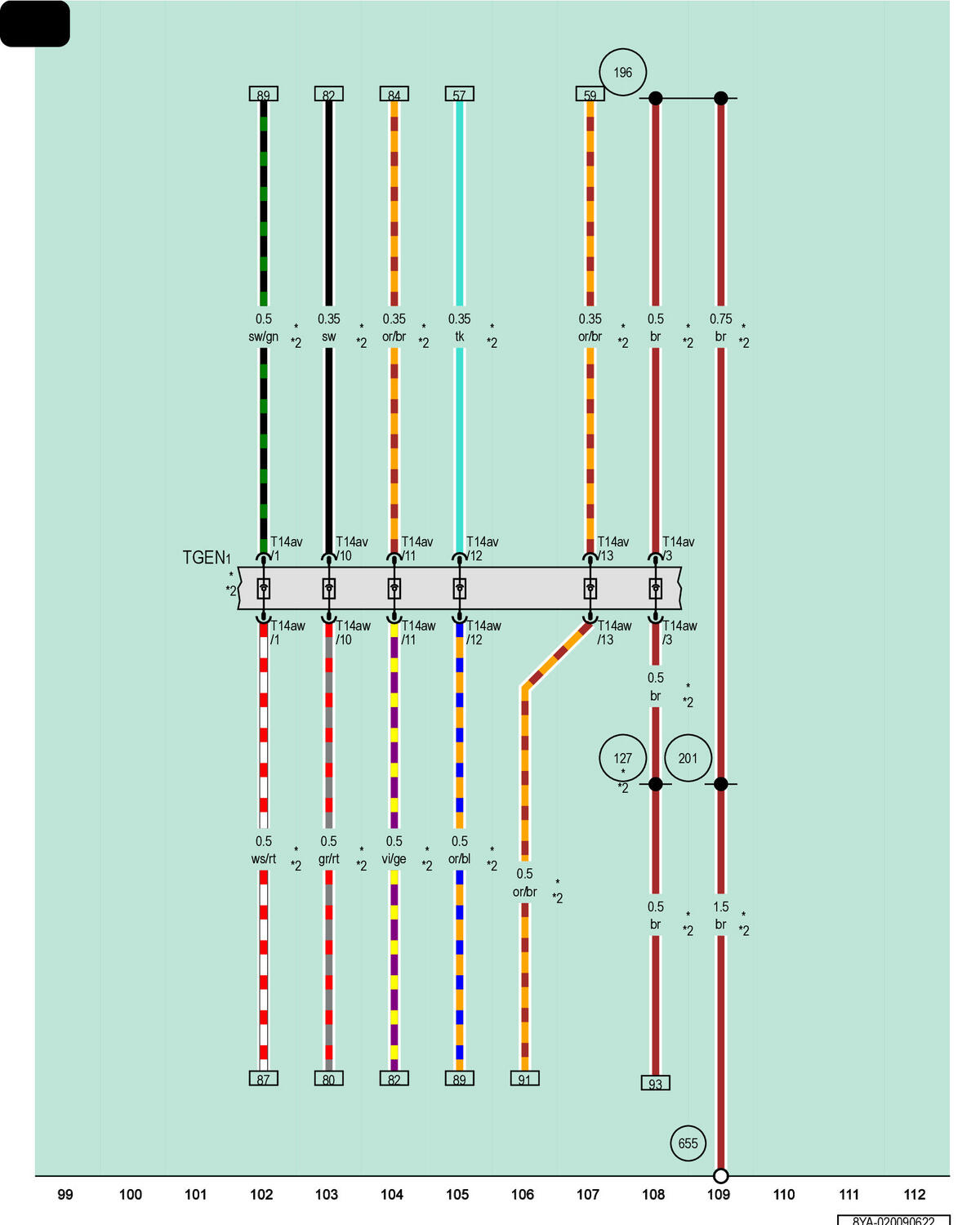

Generator Coupling Point 1
T14av
14-Pin Connector, Black
T14aw
14-Pin Connector, Black
TGEN1
Generator Coupling Point 1
127
Ground Connection 1 (in A/C Compressor Wiring Harness)
196
Ground Connection 3 (in Rear Wiring Harness)
201
Ground Connection 5 (in Engine/Motor Compartment Wiring Harness)
655
Ground Connection on Left Headlamp
*
For LEV3/Tier 3 70 Emissions Standard
*2
From June 2021
