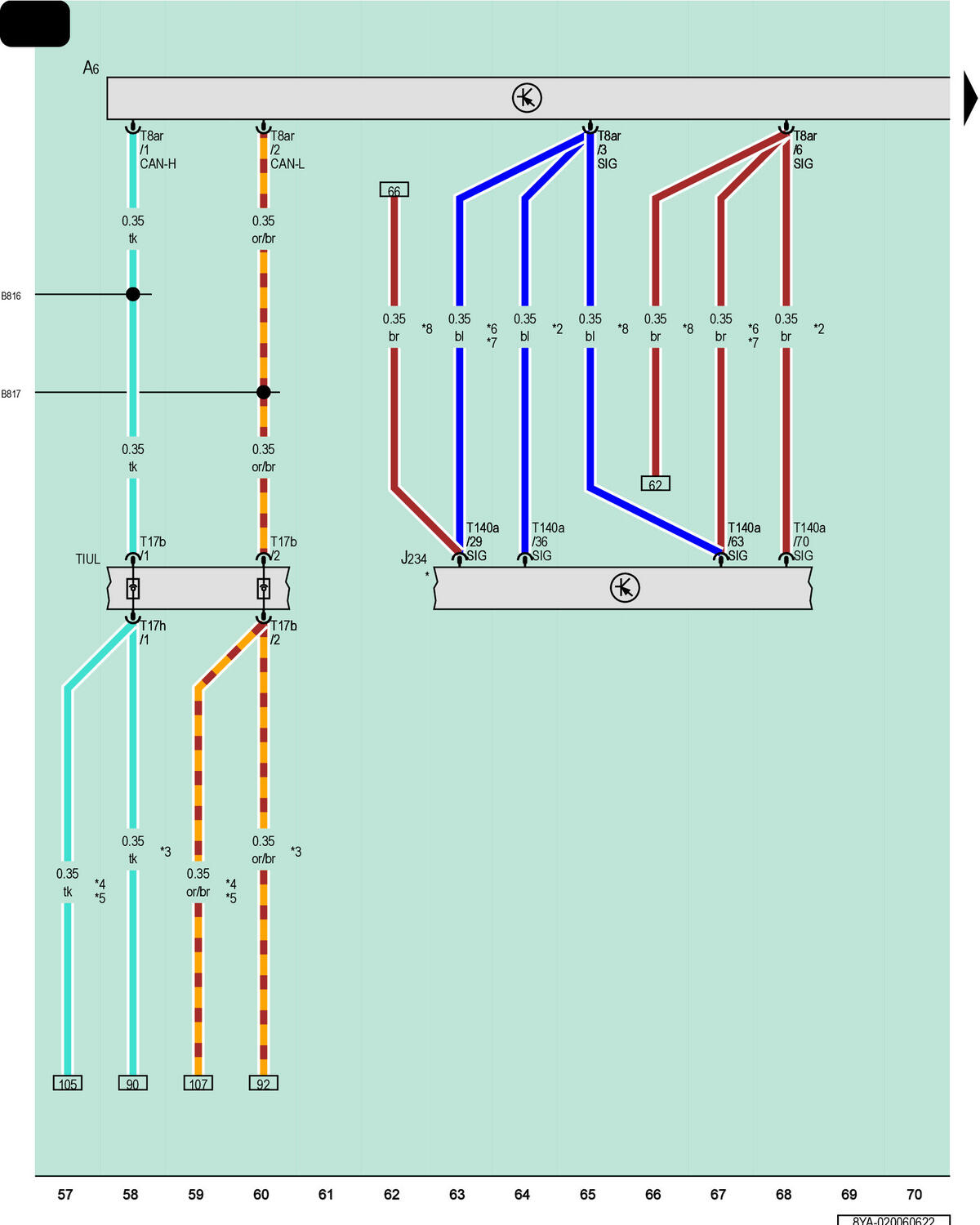

Battery, 48 V, Airbag Control Module

Courtesy of AUDI OF AMERICA, LLC

A6

Battery, 48 V

J234

Airbag Control Module

T8ar

8-Pin Connector, Black

T17b

17-Pin Connector, Black

T17h

17-Pin Connector, Black

T140a

140-Pin Connector, Yellow

TIUL

Coupling Point in Interior, Bottom Left

B816

Hybrid CAN Bus High Connection 2 (in Main Wiring Harness)

B817

Hybrid CAN Bus Low Connection 2 (in Main Wiring Harness)

*

Refer to Applicable Airbag Wiring Diagram

*2

Through November 2020

*3

For Emissions Standard Euro 6 AP

*4

For LEV3/Tier 3 70 Emissions Standard

*5

From June 2021

*6

From November 2020

*7

Through November 2021

*8

From November 2021
