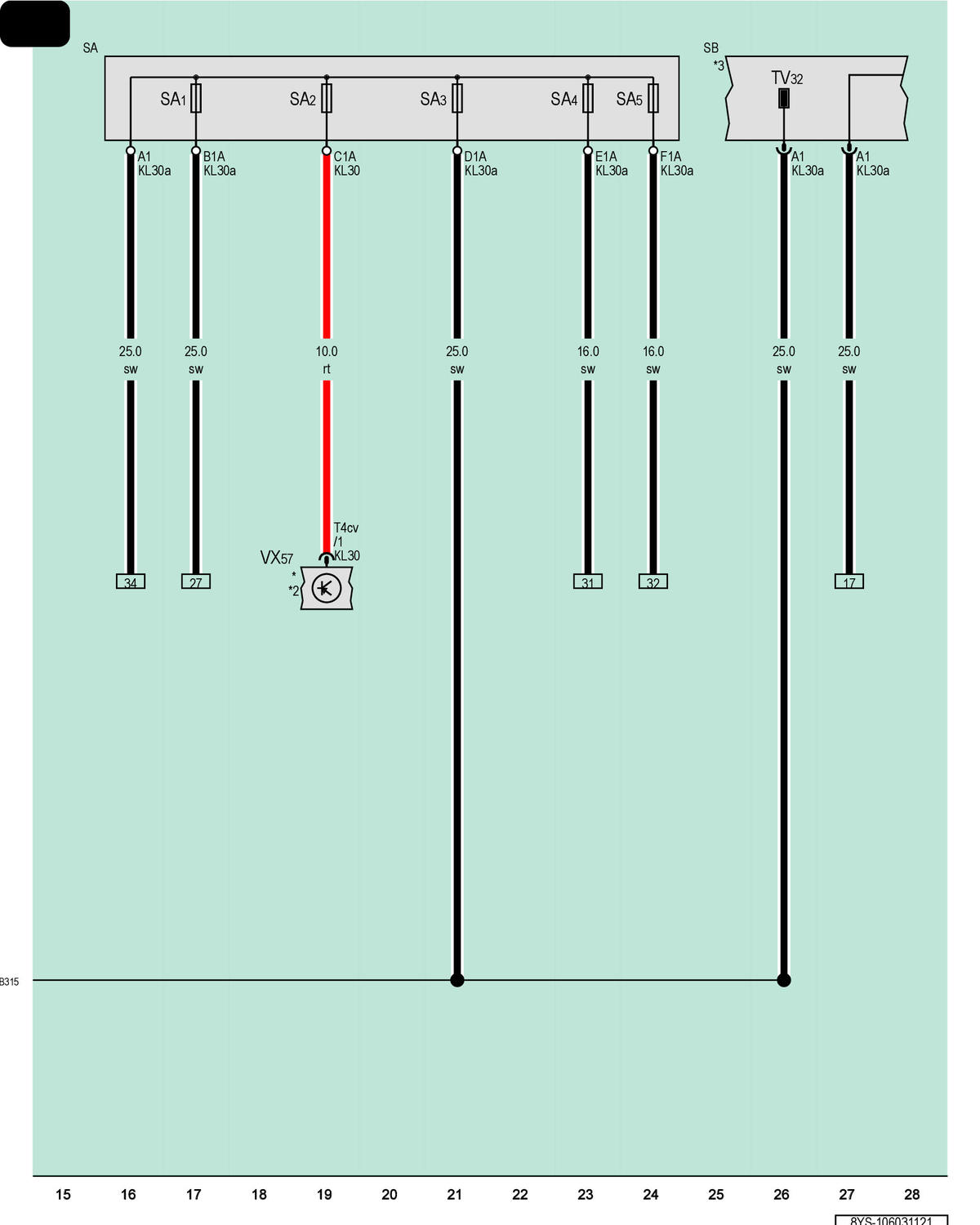

Fuse Panel A, Fuse Panel B, Remote Start Connection, Radiator Fan

Courtesy of AUDI OF AMERICA, LLC

SA

Fuse Panel A

SA1

Fuse 1 (On Fuse Panel A)

SA2

Fuse 2 (On Fuse Panel A)

SA3

Fuse 3 (On Fuse Panel A)

SA4

Fuse 4 (On Fuse Panel A)

SA5

Fuse 5 (On Fuse Panel A)

SB

Fuse Panel B

T4cv

4-Pin Connector, Black

TV32

Remote Start Connection

VX57

Radiator Fan

B315

Positive Connection 1 (30a) (in Main Wiring Harness)

*

Refer to Applicable Radiator Fan Wiring Diagram

*2

Pre-Wired Component

*3

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment
