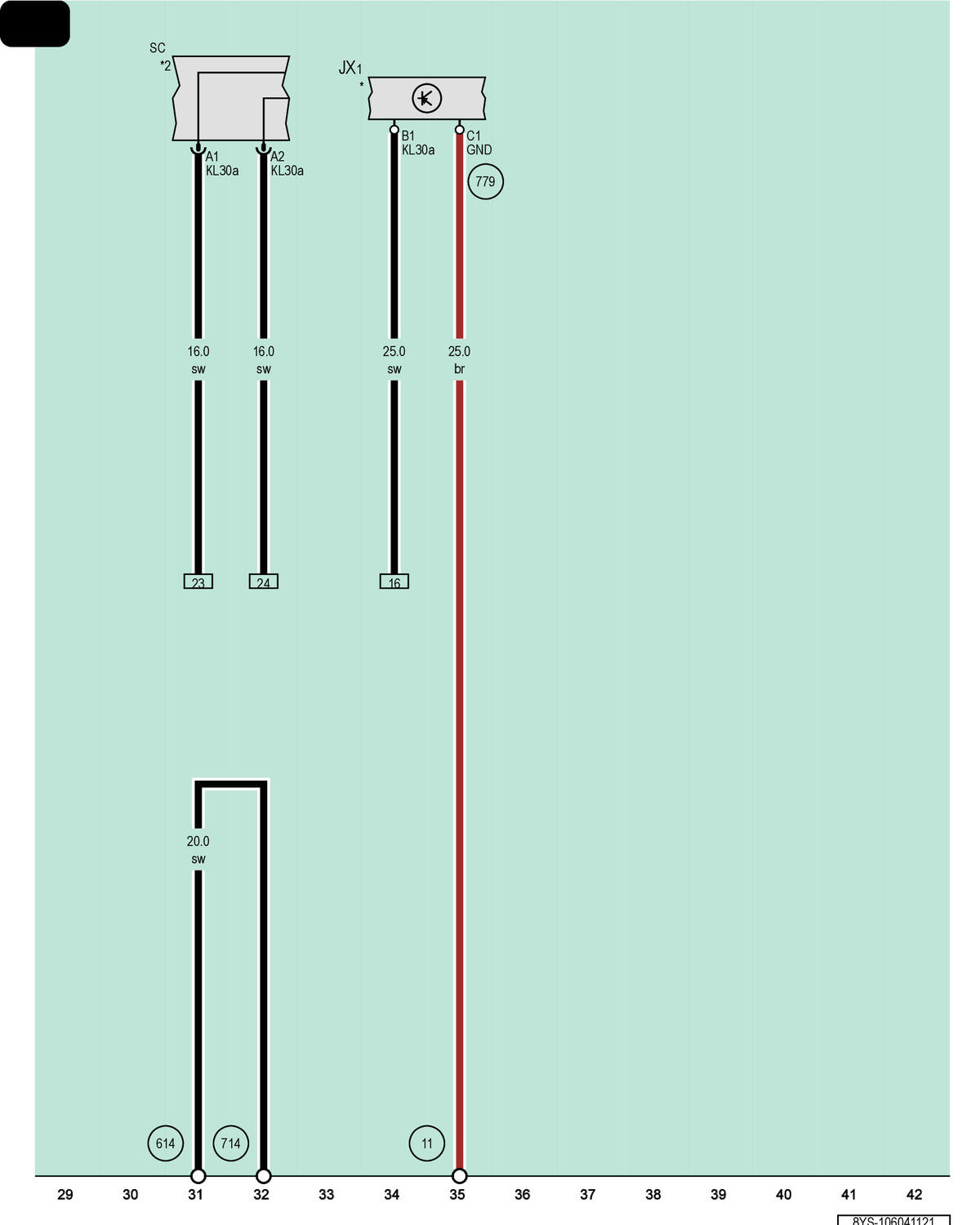

Electric Drive Power And Control Electronics, Fuse Panel C
JX1
Electric Drive Power and Control Electronics
SC
Fuse Panel C
11
Ground Connection in Battery Compartment
614
Ground Connection 2 in Engine/Motor Compartment, Right
714
Ground Connection on Engine, Right
779
Electric Drive Power and Control Electronics Ground Connection 1
*
Refer to Applicable High-Voltage System Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
