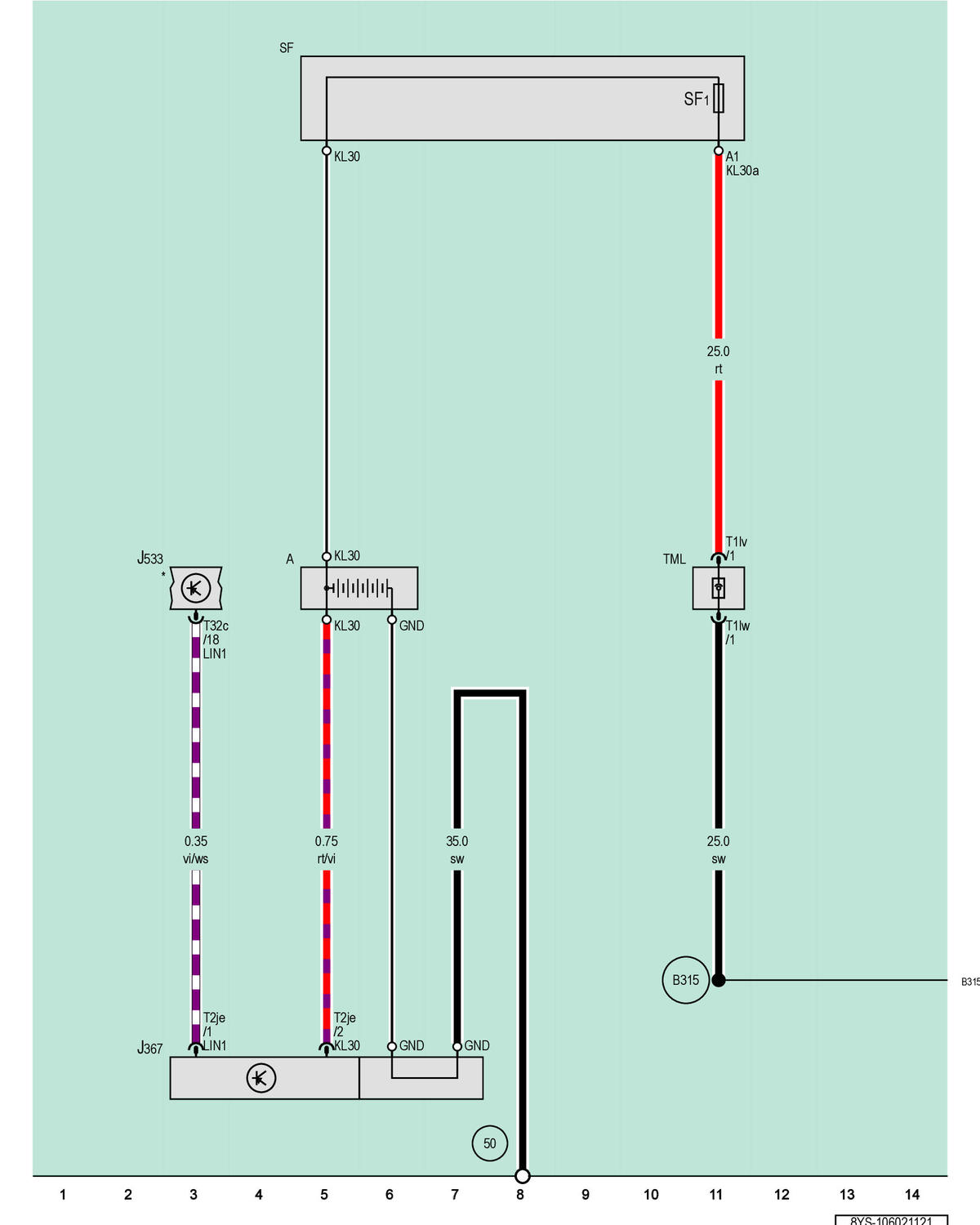

Battery, Battery Monitoring Control Module, Data Bus On Board Diagnostic Interface, Fuse Panel F

Courtesy of AUDI OF AMERICA, LLC

A

Battery

J367

Battery Monitoring Control Module

J533

Data Bus on Board Diagnostic Interface

SF

Fuse Panel F

SF1

Fuse 1 (On Fuse Panel F)

T1lv

1-Pin Connector, Black

T1lw

1-Pin Connector, Black

T2je

2-Pin Connector, Black

T32c

32-Pin Connector, Black

TML

Coupling Point in Engine/Motor Compartment, Left

50

Ground Connection in Luggage Compartment, Left

B315

Positive Connection 1 (30a) (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Data Bus Networking
