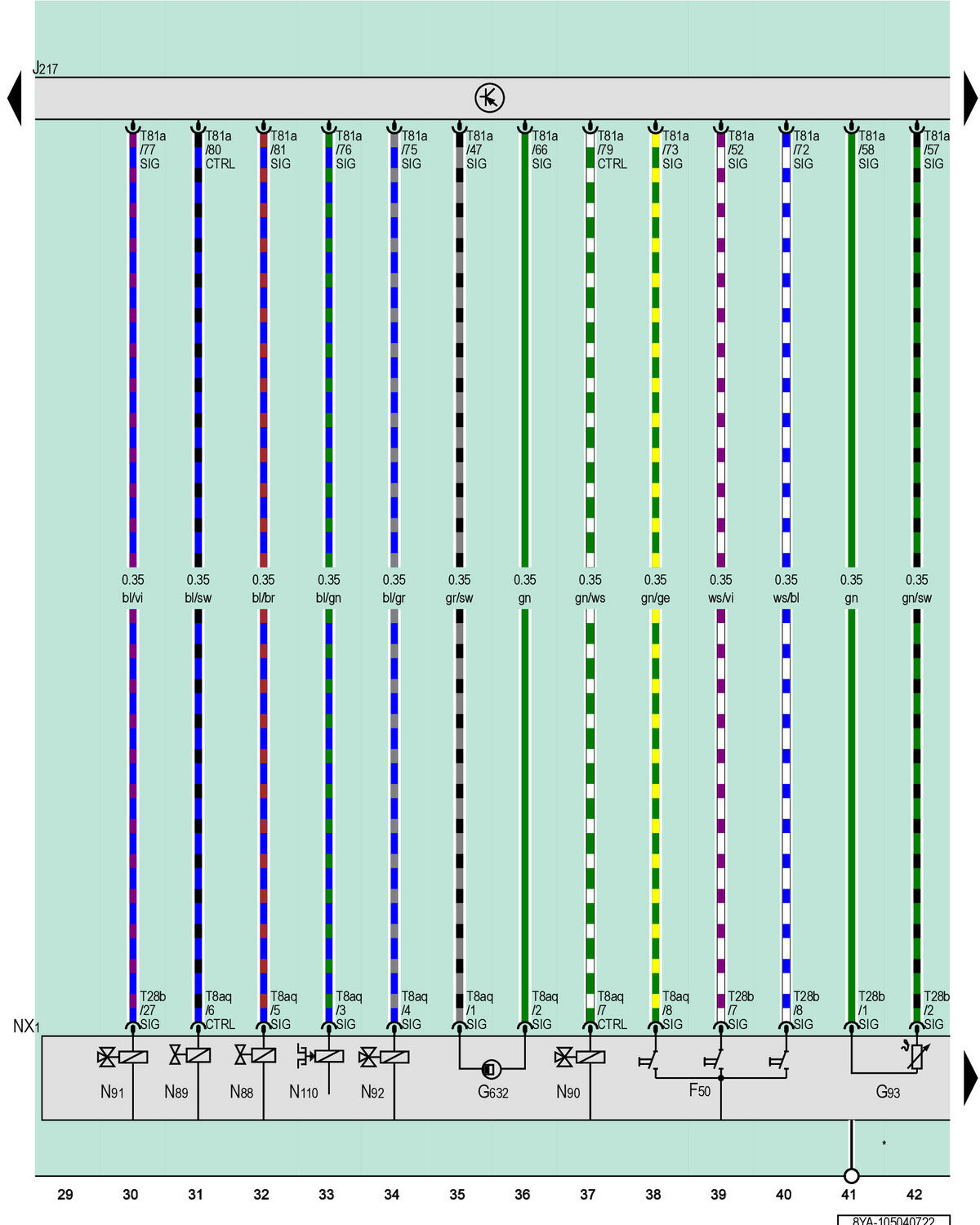

Transmission Control Module, Transmission

Courtesy of AUDI OF AMERICA, LLC

F50

ATF Pressure Switch

G93

Transmission Fluid Temperature Sensor

G632

Transmission Input Speed Sensor 1

J217

Transmission Control Module

NX1

Transmission

N88

Solenoid Valve 1

N89

Solenoid Valve 2

N90

Solenoid Valve 3

N91

Solenoid Valve 4

N92

Solenoid Valve 5

N110

Shift Lock Solenoid

T1awb

1-Pin Connector, Black

T8aq

8-Pin Connector, Black

T28b

28-Pin Connector, Black

T81a

81-Pin Connector, Black

*

Ground Supply via the Housing

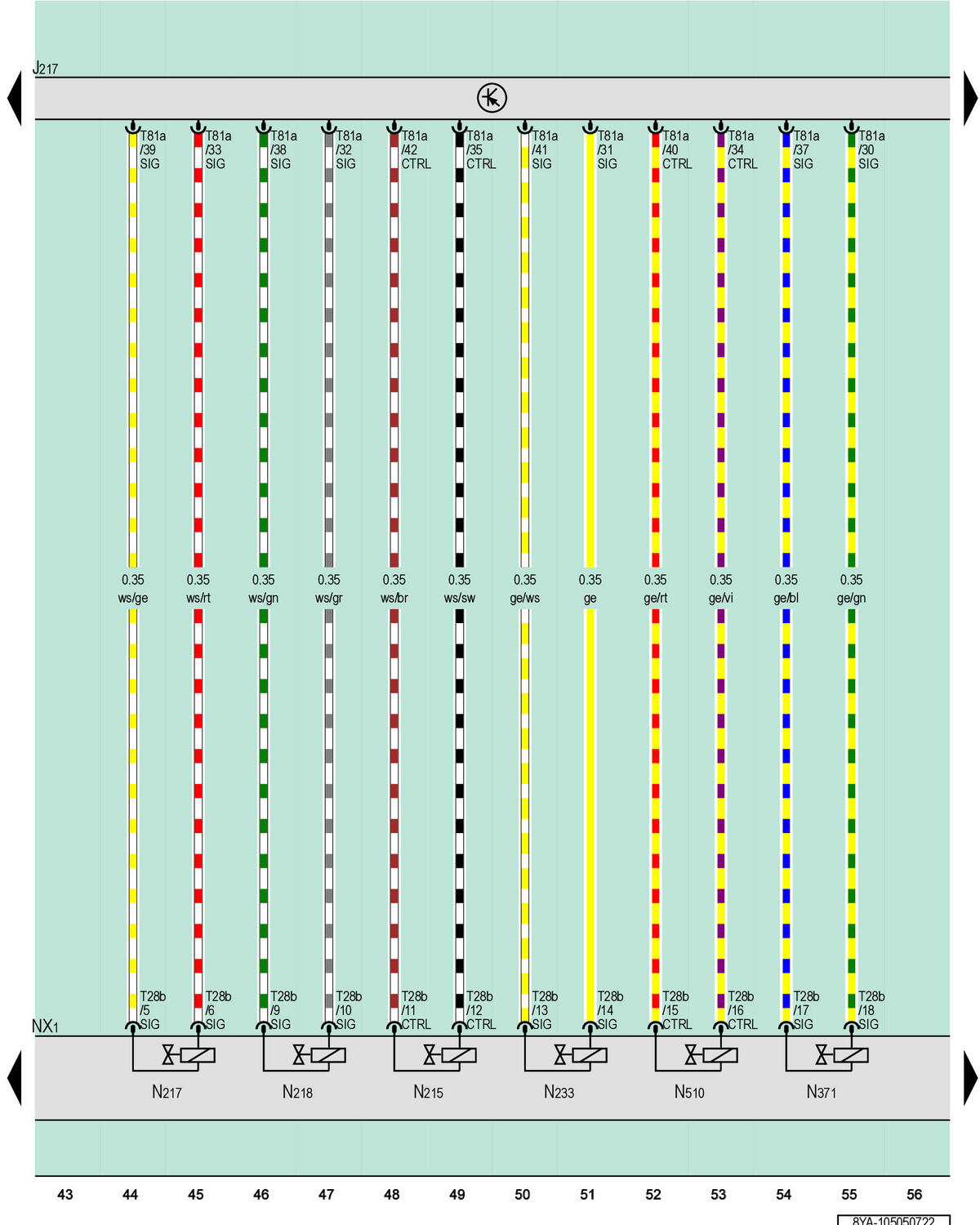

Courtesy of AUDI OF AMERICA, LLC

J217

Transmission Control Module

NX1

Transmission

N215

Automatic Transmission Pressure Regulating Valve 1

N217

Automatic Transmission Pressure Regulating Valve 3

N218

Automatic Transmission Pressure Regulating Valve 4

N233

Automatic Transmission Pressure Regulating Valve 5

N371

Automatic Transmission Pressure Regulating Valve 6

N510

Automatic Transmission Pressure Regulating Valve 8

T28b

28-Pin Connector, Black

T81a

81-Pin Connector, Black

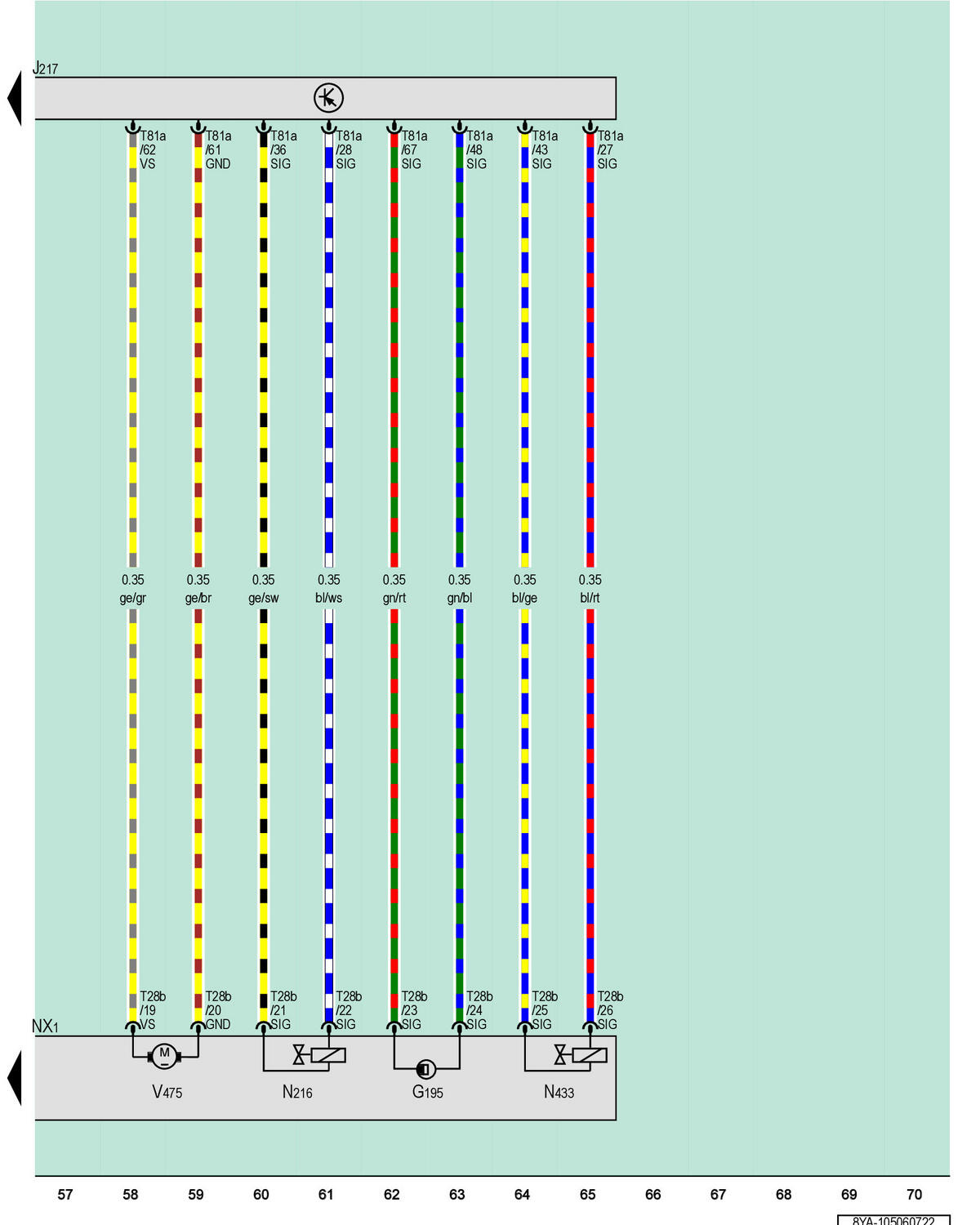

Courtesy of AUDI OF AMERICA, LLC

G195

Transmission Output Speed Sensor

J217

Transmission Control Module

NX1

Transmission

N216

Automatic Transmission Pressure Regulating Valve 2

N433

Sub-Transmission 1 Valve 1

T28b

28-Pin Connector, Black

T81a

81-Pin Connector, Black

V475

Transmission Fluid Auxiliary Hydraulic Pump 1
