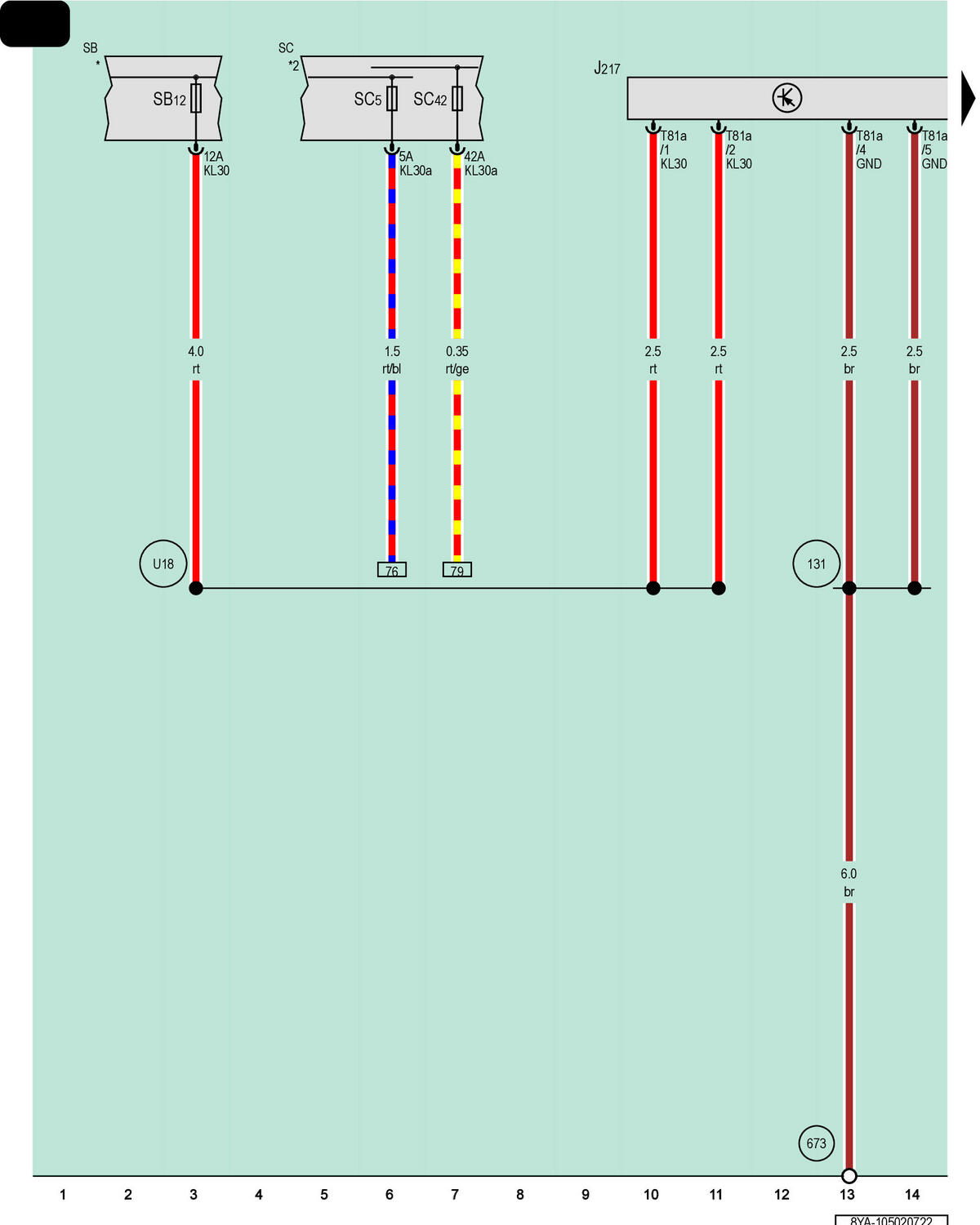

Transmission Control Module, Fuse Panel B, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J217

Transmission Control Module

SB

Fuse Panel B

SB12

Fuse 12 (On Fuse Panel B)

SC

Fuse Panel C

SC5

Fuse 5 (On Fuse Panel C)

SC42

Fuse 42 (On Fuse Panel C)

T81a

81-Pin Connector, Black

131

Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)

673

Ground Connection 3 on Left Front Longitudinal Member

U18

Positive Connection (30a) (in Automatic Transmission Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
