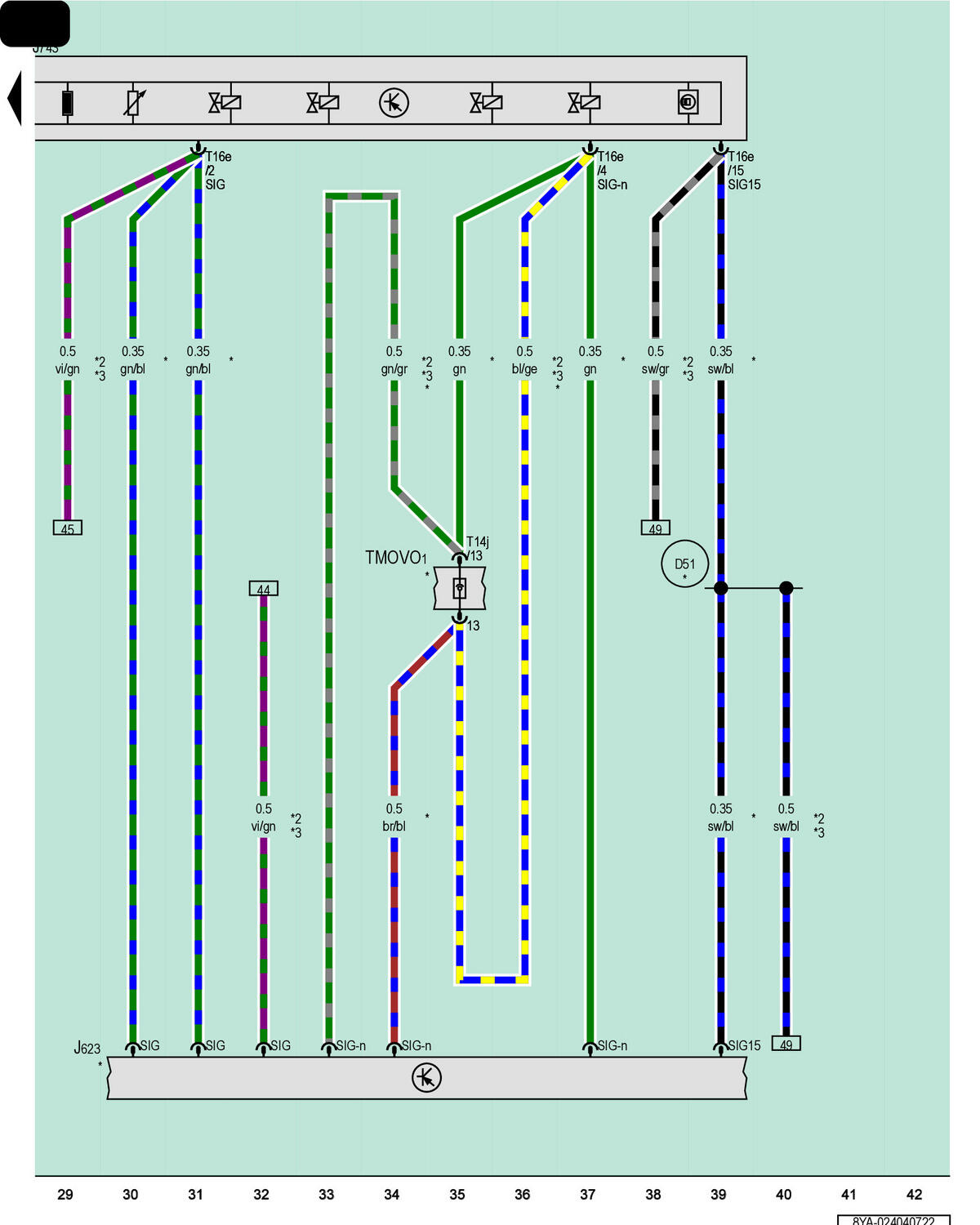

Engine/Motor Control Module, Dual-Clutch Transmission MECHATRONIC

Courtesy of AUDI OF AMERICA, LLC

G546

Hydraulic Pressure Sensor 2

G612

Transmission Input Speed Sensor 2

J623

Engine/Motor Control Module

J743

Dual-Clutch Transmission Mechatronic

N437

Sub-Transmission 2 Valve 1

N438

Sub-Transmission 2 Valve 2

N439

Sub-Transmission 2 Valve 3

N440

Sub-Transmission 2 Valve 4

T14j

14-Pin Connector, Gray

T16e

16-Pin Connector, Black

TMOVO1

Engine Pre-Wiring Coupling Point 1

D51

Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)

*

Refer to Applicable Engine Wiring Diagram

*2

For Vehicles with 2.5L Gasoline Engine

*3

From June 2021

Courtesy of AUDI OF AMERICA, LLC

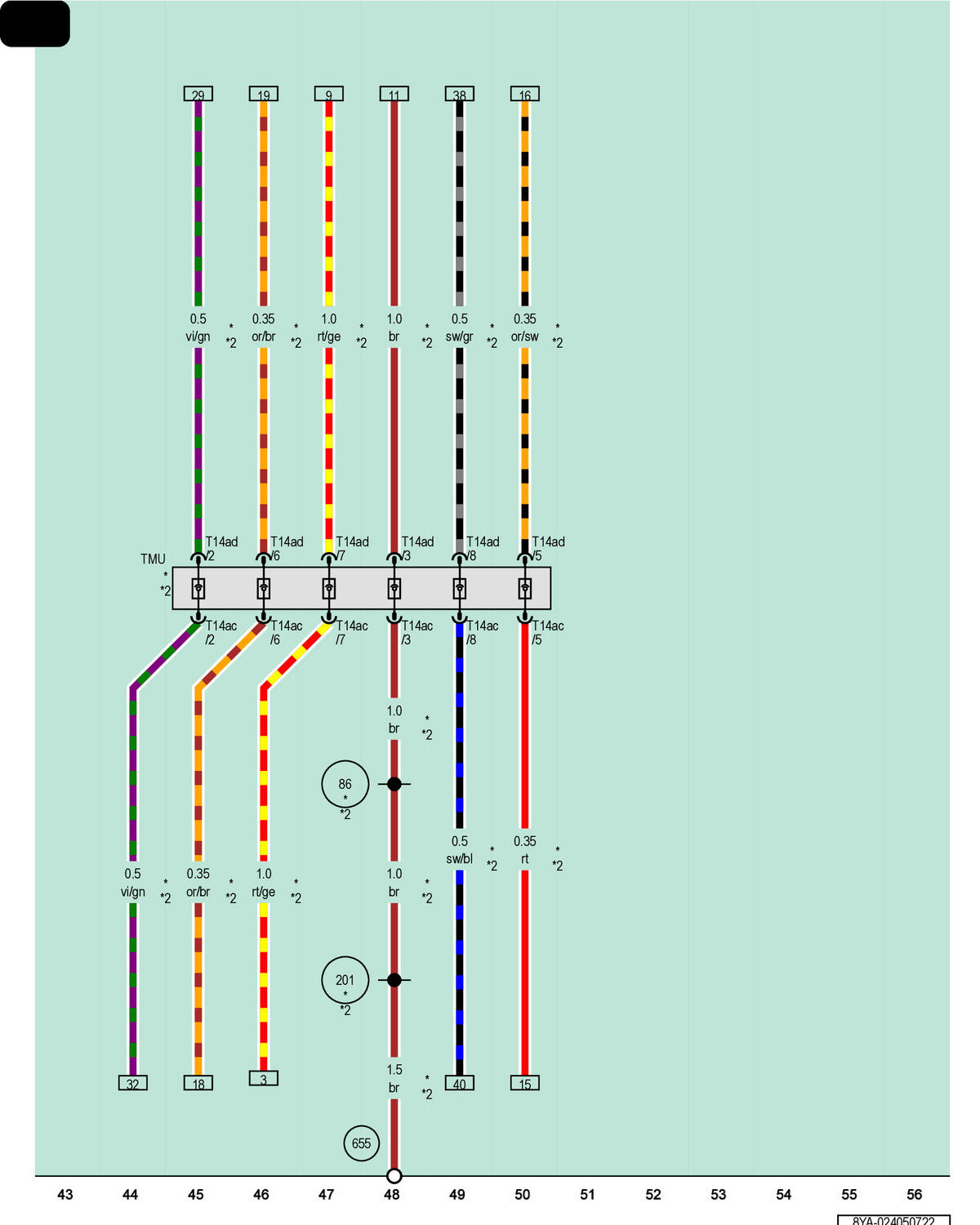

T14ac

14-Pin Connector, Black

T14ad

14-Pin Connector, Black

TMU

Coupling Point on Engine, Bottom

86

Ground Connection 1 (in Rear Wiring Harness)

201

Ground Connection 5 (in Engine/Motor Compartment Wiring Harness)

655

Ground Connection on Left Headlamp

*

For Vehicles with 2.5L Gasoline Engine

*2

From June 2021
