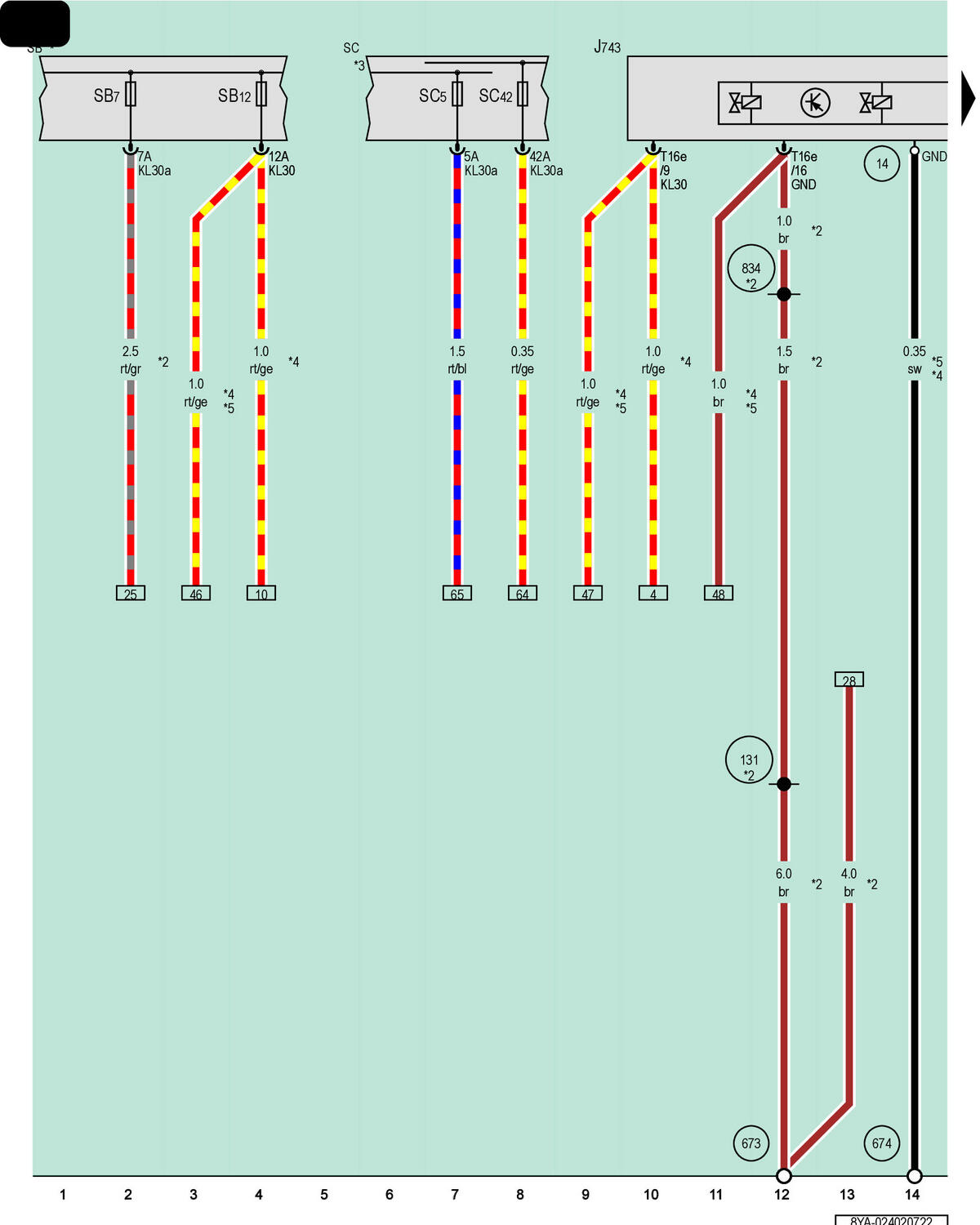

Dual-Clutch Transmission MECHATRONIC, Fuse Panel B, Fuse Panel C
J743
Dual-Clutch Transmission Mechatronic
N471
Cooling Oil Valve
N472
Main Pressure Valve
SB
Fuse Panel B
SB7
Fuse 7 (On Fuse Panel B)
SB12
Fuse 12 (On Fuse Panel B)
SC
Fuse Panel C
SC5
Fuse 5 (On Fuse Panel C)
SC42
Fuse 42 (On Fuse Panel C)
T16e
16-Pin Connector, Black
14
Ground Connection on Transmission
131
Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)
673
Ground Connection 3 on Left Front Longitudinal Member
674
Ground Connection 4 on Left Front Longitudinal Member
834
Ground Connection 16 (in Engine/Motor Compartment Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment
*2
Not for Vehicles with a 2.5L Gasoline Engine
*3
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*4
For Vehicles with 2.5L Gasoline Engine
*5
From June 2021
