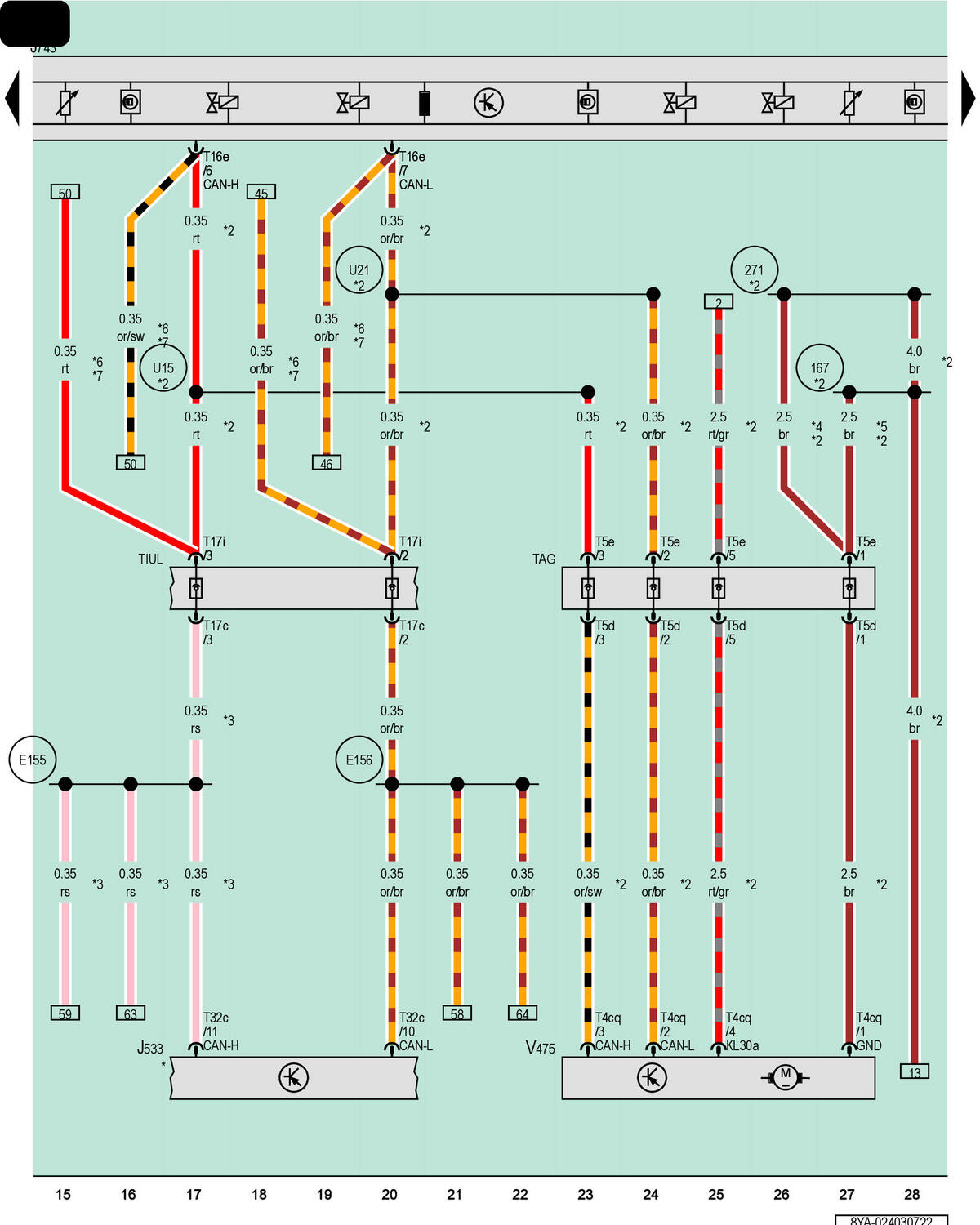

Data Bus On Board Diagnostic Interface, Dual-Clutch Transmission MECHATRONIC, Transmission Fluid Auxiliary Hydraulic Pump 1
G93
Transmission Fluid Temperature Sensor
G545
Hydraulic Pressure Sensor 1
G632
Transmission Input Speed Sensor 1
J533
Data Bus on Board Diagnostic Interface
J743
Dual-Clutch Transmission Mechatronic
N433
Sub-Transmission 1 Valve 1
N434
Sub-Transmission 1 Valve 2
N435
Sub-Transmission 1 Valve 3
N436
Sub-Transmission 1 Valve 4
T4cq
4-Pin Connector, Black
T5d
5-Pin Connector, Black
T5e
5-Pin Connector, Black
T16e
16-Pin Connector, Black
T17c
17-Pin Connector, Brown
T17i
17-Pin Connector, Brown
T32c
32-Pin Connector, Black
TAG
Automatic Transmission Coupling Point
TIUL
Coupling Point in Interior, Bottom Left
V475
Transmission Fluid Auxiliary Hydraulic Pump 1
167
Ground Connection 4 (in Engine/Motor Compartment Wiring Harness)
271
Ground Connection 3 (in Front Wiring Harness)
E155
Connection 1 (CAN Bus Automatic Transmission Control Module, High)
E156
Connection 1 (CAN Bus Automatic Transmission Control Module, Low)
U15
CAN Bus High Connection 1 (in Automatic Transmission Wiring Harness)
U21
CAN Bus Low Connection 1 (in Automatic Transmission Wiring Harness)
*
Refer to Applicable Wiring Diagram for Data Bus Networking
*2
Not for Vehicles with a 2.5L Gasoline Engine
*3
Different Wire Color Possible
*4
For Vehicles with Gasoline Engine
*5
For Vehicles with Diesel Engine
*6
For Vehicles with 2.5L Gasoline Engine
*7
From June 2021
