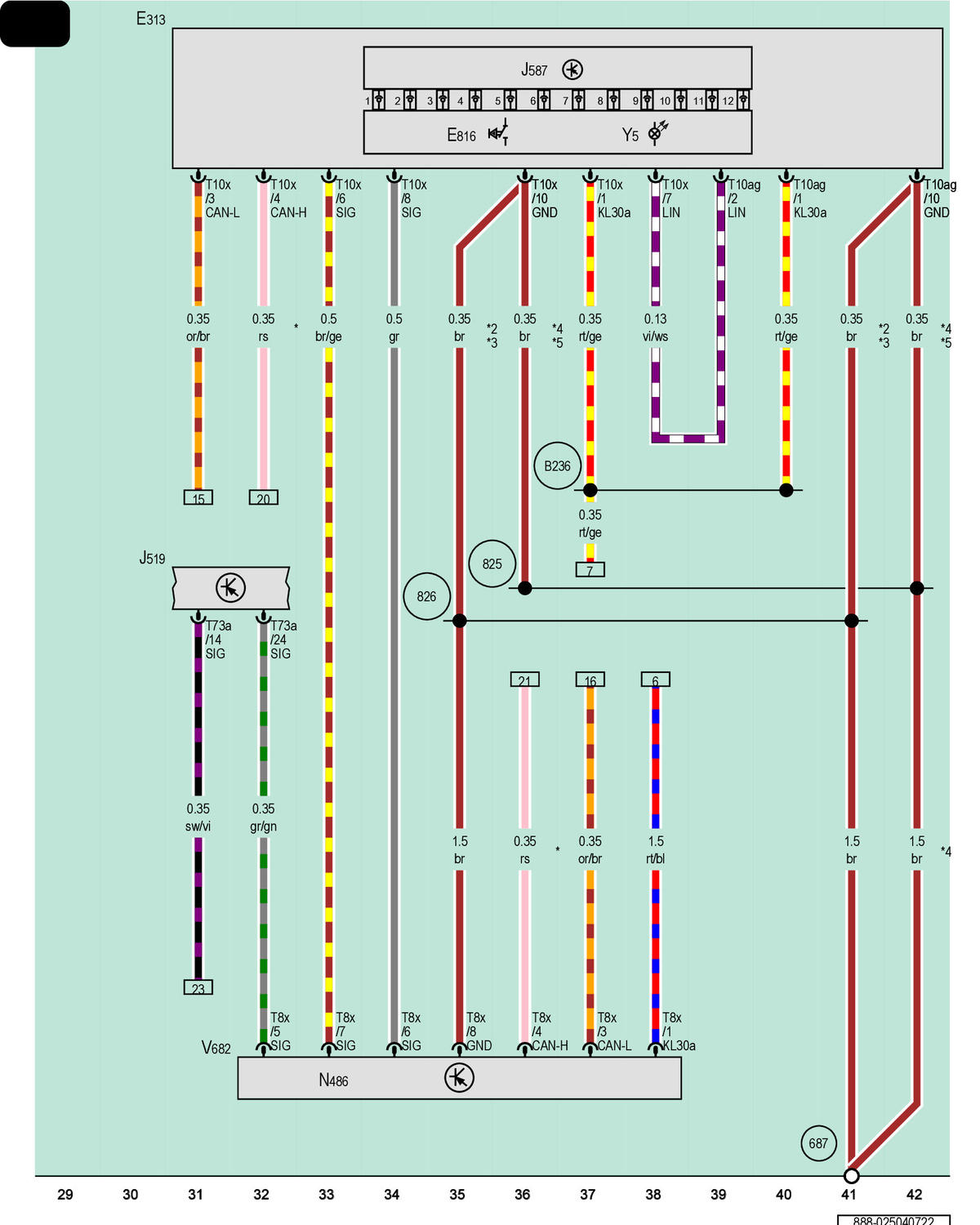

Selector Lever, Vehicle Electrical System Control Module, Parking Lock Actuator

Courtesy of AUDI OF AMERICA, LLC

E313

Selector Lever

E816

Parking Lock Button

J519

Vehicle Electrical System Control Module

J587

Selector Lever Sensor System Control Module

N486

Parking Lock Solenoid

T8x

8-Pin Connector, Black

T10ag

10-Pin Connector, Black

T10x

10-Pin Connector, Black

T73a

73-Pin Connector, Black

V682

Parking Lock Actuator

Y5

Selector Lever Transmission Range Display

687

Ground Connection 1 on Center Tunnel

825

Ground Connection 18 (in Interior Wiring Harness)

826

Ground Connection 19 (in Interior Wiring Harness)

B236

Positive Connection 6 (30a) (in Interior Wiring Harness)

*

Different Wire Color Possible

*2

Through April 2020

*3

From June 2022

*4

From April 2020

*5

Through June 2022
